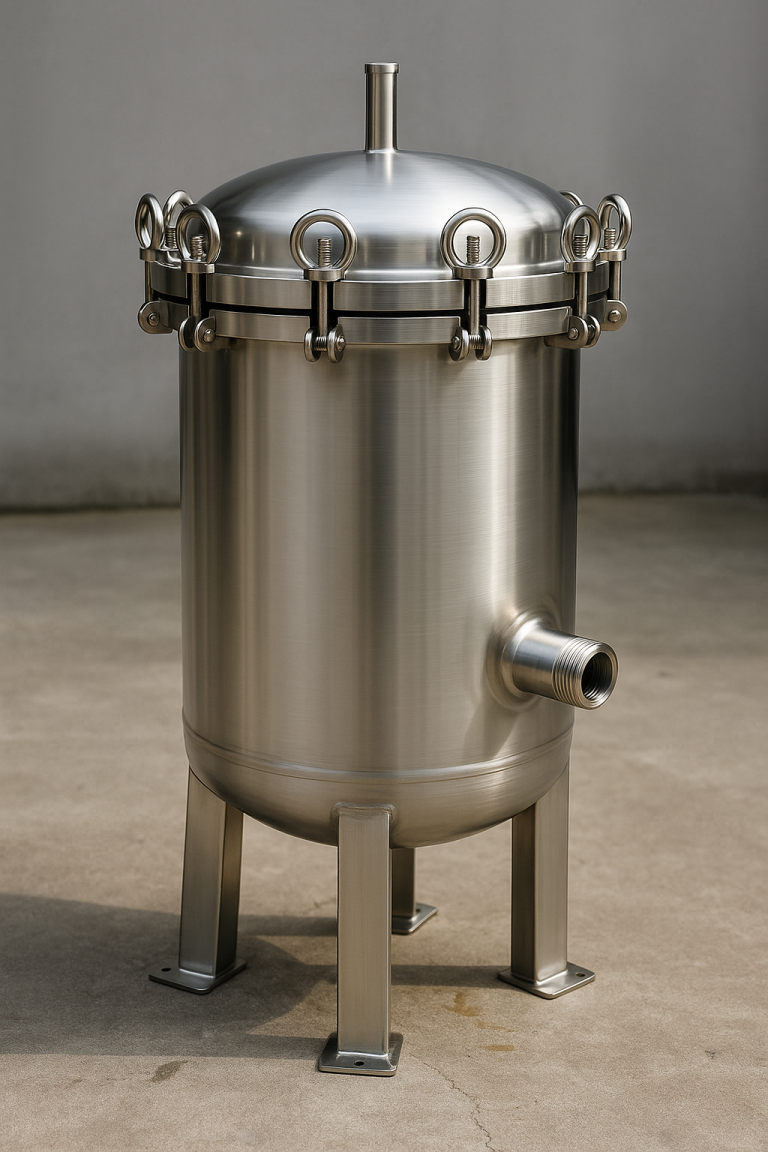

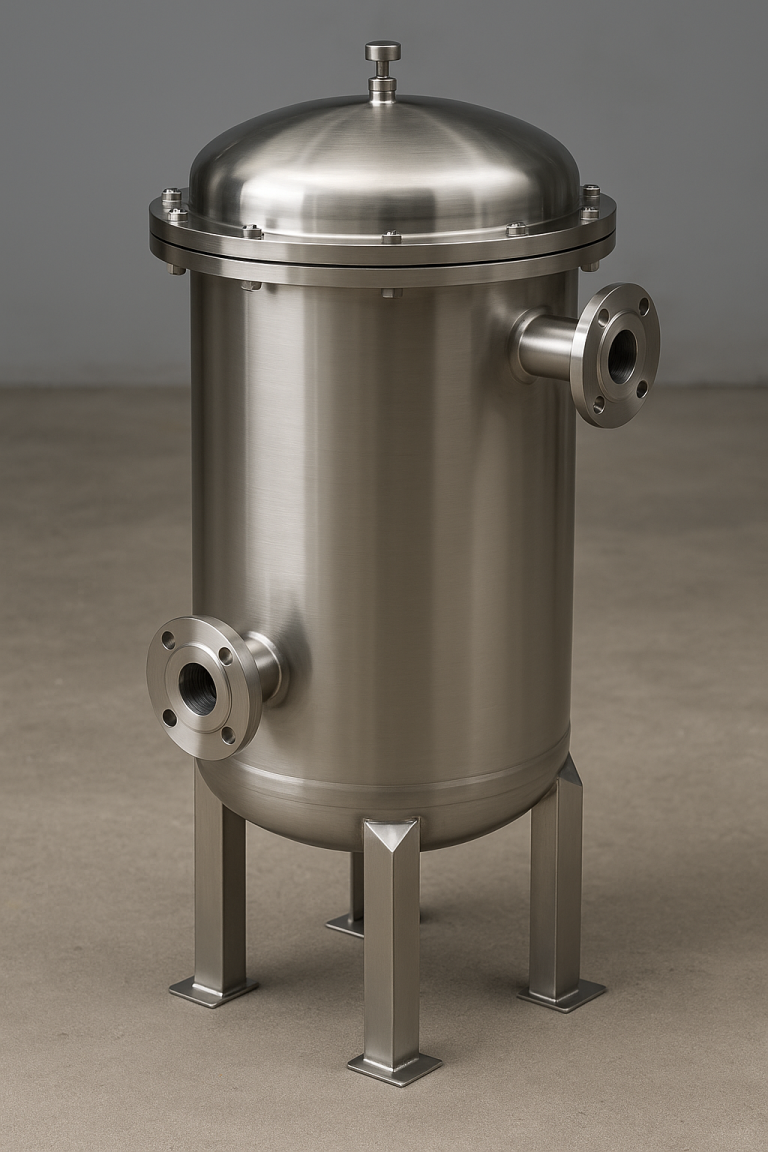

Stainless Steel Activated Carbon Filter Tank for Industrial Applications

Product Overview

The Stainless Steel Activated Carbon Filter Tank is an industrial-grade filtration solution engineered to meet the demands of high-volume water treatment applications. Designed for effective removal of chlorine, organic matter, and unpleasant odors, this tank ensures clean and safe water across diverse environments.

Crafted from premium-grade SUS304 or SUS316 stainless steel, the tank provides superior corrosion resistance, structural durability, and hygiene compliance. Its modular design and standardized pipe fittings support seamless integration into a variety of filtration systems.

Offering outstanding cost-performance ratio, the system is particularly well-suited for large-scale engineering projects, including municipal water stations, beverage production facilities, and industrial wastewater reuse setups. The easy-access top cover allows for fast carbon media replacement and routine maintenance, reducing system downtime.

Detailed Description

The Stainless Steel Activated Carbon Filter Tank plays a crucial role in pre-treatment and advanced water purification processes. It utilizes high-quality granular activated carbon (GAC) to effectively remove residual chlorine, pesticides, volatile organic compounds (VOCs), and unpleasant taste or odor from raw water. This makes it ideal for both potable and process water applications.

Constructed from SUS304 or SUS316 stainless steel, the tank offers exceptional resistance to corrosion and oxidation, ensuring long-term reliability even in harsh industrial environments. For projects requiring enhanced chemical compatibility or lower budget considerations, custom options in carbon steel with epoxy coating or FRP lining are also available.

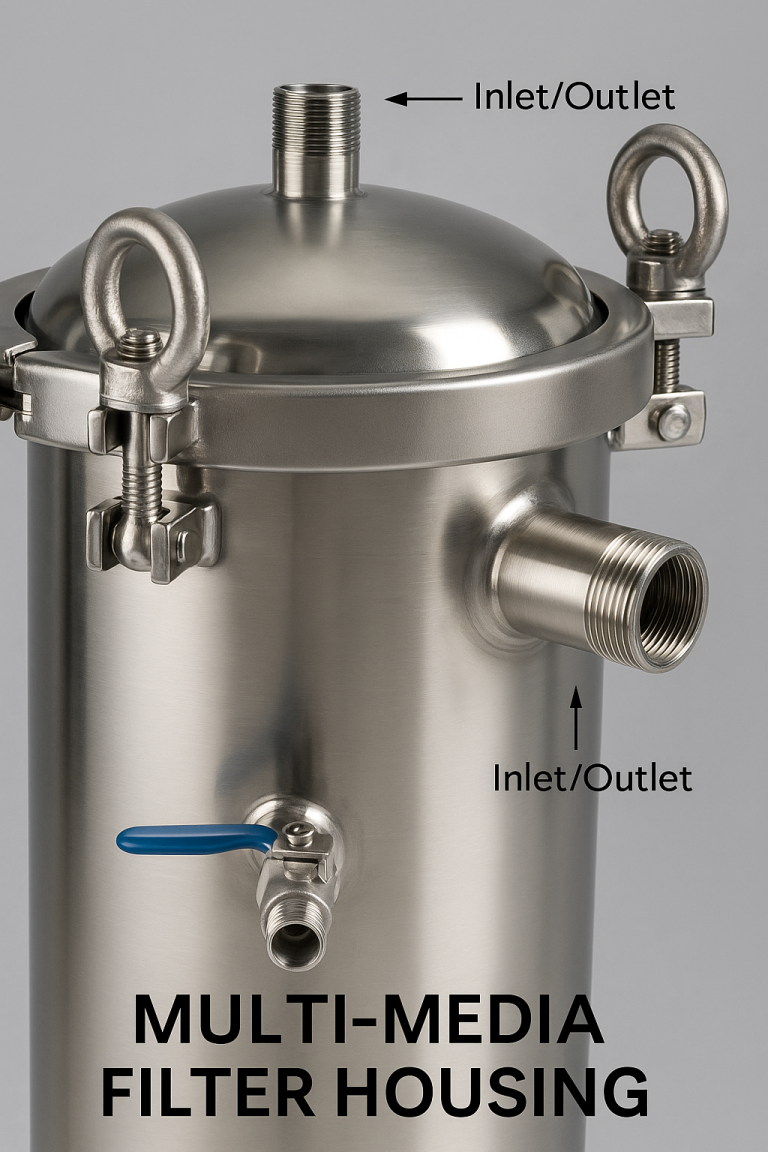

The tank features a top-opening manway or bolted lid for easy refilling and maintenance, as well as standardized flanged or tri-clamp connections for swift system integration. Interior surfaces are polished to hygienic standards, making the unit suitable for applications in food, pharmaceutical, and beverage sectors.

With flow rates ranging from 1 to 100+ m³/h, the system supports single- or multi-tank configurations depending on project scale. Our engineering team provides full customization services including skid-mounted systems, automated control valves, and integrated pressure gauges, meeting the needs of both compact and large-scale facilities.

The product is designed with global standards in mind, and has been successfully deployed in export projects across Southeast Asia, the Middle East, and Europe. Whether used as part of an RO system or a standalone filtration step, this tank offers stable performance, low maintenance, and high return on investment.

Technical Specifications

Parameter	Specification
Tank Material	SUS304 / SUS316 Stainless Steel (Optional: Carbon Steel + Epoxy, FRP Lining)
Filtration Media	Granular Activated Carbon (GAC), Coconut Shell Based
Flow Rate Range	1 – 100+ m³/h (Customizable)
Operating Pressure	0.2 – 0.6 MPa
Tank Diameter	400 mm – 2000 mm (Customizable)
Tank Height	1000 mm – 3500 mm (Customizable)
Connection Type	Flanged / Tri-Clamp / Threaded
Manway Access	Top or Side Mounted, Hinged or Bolted
Surface Finish	Pickled / Mirror Polished (Internal) / Brushed (External)
Optional Features	Pressure Gauge, Air Vent Valve, Backwash Control System, Skid-Mounted Frame

Applicable Industries

Our Stainless Steel Activated Carbon Filter Tank is widely utilized in various industrial and commercial sectors that demand high-efficiency water pre-treatment. Its durable stainless steel construction and customizable design make it suitable for long-term operation under demanding conditions:

Municipal Water Treatment: Pre-treatment system for public drinking water supply, improving taste and reducing residual chlorine.
Industrial Manufacturing: Used in electronics, textiles, and plating industries to remove organic contaminants, odors, and chlorine before entering process lines.
Pharmaceutical & Biotechnology: Supports clean water pre-filtration to meet stringent regulatory standards.
Food & Beverage Production: Ensures odorless, chlorine-free water for beverage mixing, cleaning, and CIP systems.
Power Plants: Integrated into boiler feedwater systems to extend membrane and equipment life.
Overseas Engineering Projects: Frequently supplied in bulk for government and commercial water infrastructure projects in the Middle East, Southeast Asia, and Africa.

With STARK’s global experience in export engineering and our support for OEM/ODM customization, we ensure that each activated carbon filter tank fits seamlessly into your system, regardless of size, flow rate, or local regulations.
