Multi-Bag Filter – Quick-Open & Efficient Filtration
Multi-Bag Filter – Quick-Open & Efficient Filtration
Product Overview
Our multi-bag filter with a quick-open design ensures efficient, hygienic liquid filtration
across various industries. Constructed from SUS304 or SUS316L, it operates reliably at 0.7 MPa,
offering fast bag replacement and minimal downtime.
Product Overview
Our multi-bag filter with a quick-open design ensures efficient, hygienic liquid filtration
across various industries. Constructed from SUS304 or SUS316L, it operates reliably at 0.7 MPa,
offering fast bag replacement and minimal downtime.
Multi-Bag Filter – Quick-Open & Efficient Filtration
Product Overview

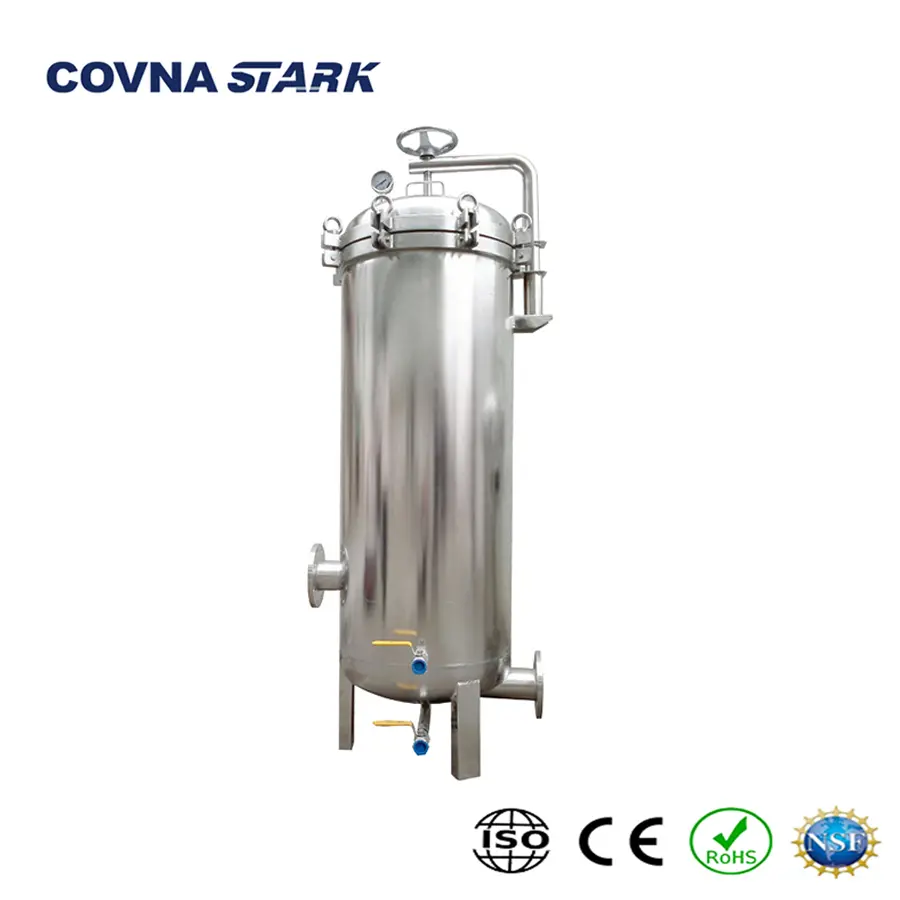

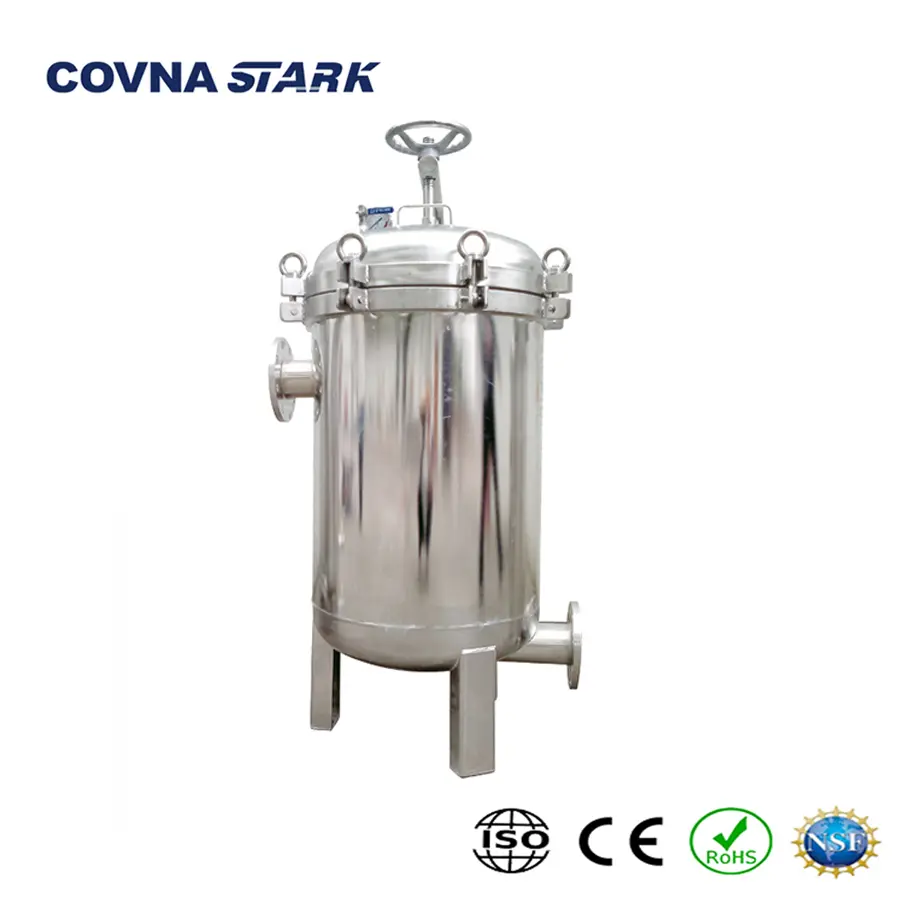

The Multi-Bag Filter (Quick Open Type) is engineered for high-volume, high-efficiency liquid filtration
in food, pharmaceutical, and industrial water treatment. Its innovative quick-open mechanism
simplifies bag replacement, significantly reducing downtime. Built with SUS304 or SUS316L stainless steel,
this robust filter housing withstands working pressures up to 0.7 MPa while maintaining hygienic standards.
- Material: SUS304 / SUS316L
- Working Pressure: 0.7 MPa
- Design: Flat bottom, with legs, quick-open top
- Surface Finish: Glass or matte polish options
Key Features & Benefits

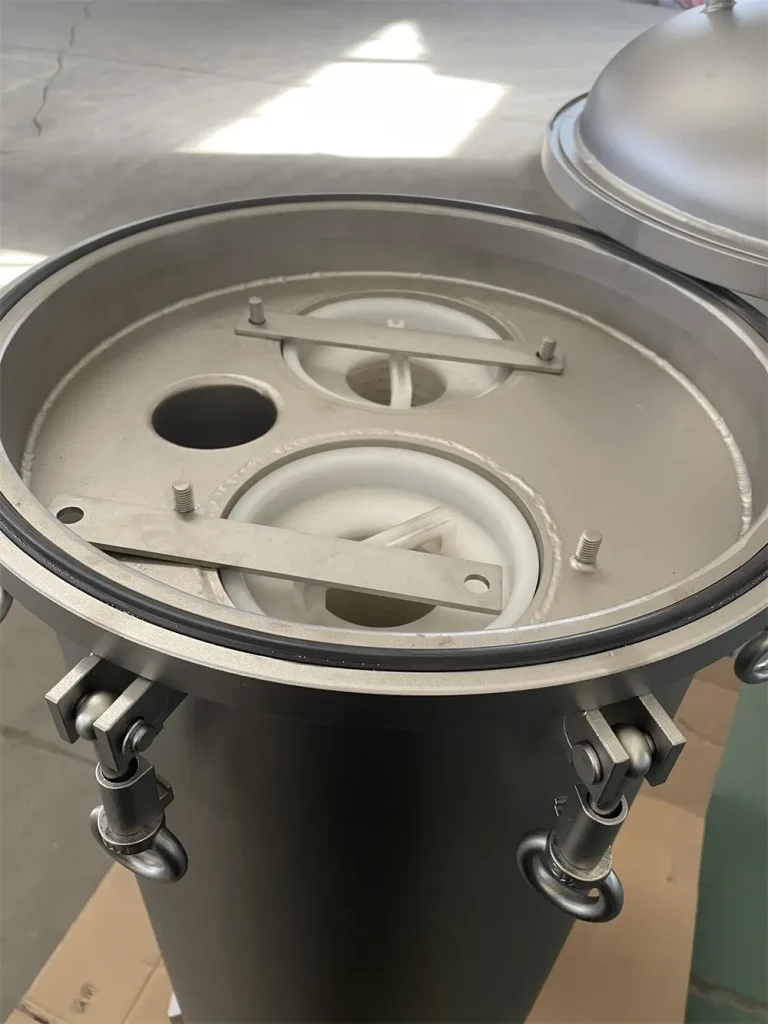

- Quick-Open Mechanism: Allows rapid bag changes, boosting productivity and reducing labor costs.
- Multi-Bag Setup: Accommodates multiple filter bags for higher flow rates and efficient filtration.
- Hygienic Construction: Smooth welds and optional mirror polish minimize contamination and residue buildup.
- Durable Performance: Reliable under 0.7 MPa, ideal for demanding industrial and sanitary environments.
Material Structure & Reinforcement
- Stainless Steel Body: Fabricated from SUS304/SUS316L for corrosion resistance and longevity.
- Leg Support: Flat bottom with stable legs ensures secure placement and easy drainage.
- Surface Finish: Available in glass or matte polish, catering to different hygiene or aesthetic needs.
Quality & Assembly Control
- Pressure-tested to handle up to 0.7 MPa with a ≥4x burst margin.
- Dimensional checks ensure proper bag alignment and leak-proof sealing.
- Meets NSF, CE, ISO9001 standards for global market acceptance.
Product Parameter
General Specifications
- Material: SUS304 / SUS316L
- Working Pressure: 0.7 MPa
- Flat bottom with legs, quick-open top design
- Surface finish: glass or matte
Technical Parameter
| Model | Diameter (mm) | Bag Count | Flow Reference (m³/h) | Housing Thickness (mm) | Effective Height (mm) | Inlet/Outlet Size |
|---|---|---|---|---|---|---|
| MBF-2 | 325 | 2 | 15.0 | 3.0 | 1200 | 2" |
| MBF-3 | 377 | 3 | 20.0 | 3.0 | 1400 | 2.5" |
| MBF-4 | 426 | 4 | 25.0 | 3.5 | 1600 | 2.5" |
| MBF-6 | 480 | 6 | 30.0 | 3.5 | 1800 | 3" |
| MBF-8 | 540 | 8 | 40.0 | 4.0 | 2000 | 3" |
| MBF-10 | 630 | 10 | 50.0 | 4.0 | 2200 | 4" |
Applicable Industry
Our Multi-Bag Filter (Quick Open Type) excels in high-flow, hygienic filtration requirements across:
- Food & Beverage: Filtration of large-volume juices, syrups, edible oils, and CIP solutions.
- Pharmaceutical & Biotech: Pre-filtration of WFI, culture media, and sensitive process fluids.
- Industrial Water Treatment: Handling of RO pretreatment, cooling tower water, and high-flow process lines.
- Chemical Processing: Clarification of solvents, acids, alkalis, and corrosive liquids in bulk.
