Product Overview
Our bag filter with clamp-style housing provides efficient and hygienic liquid filtration.
Constructed from SUS304/SUS316L stainless steel, it enables quick bag replacement and reliable performance in food, pharmaceutical, and industrial applications.
Bag Filter – Clamp-Style & Efficient Filtration
Product Overview

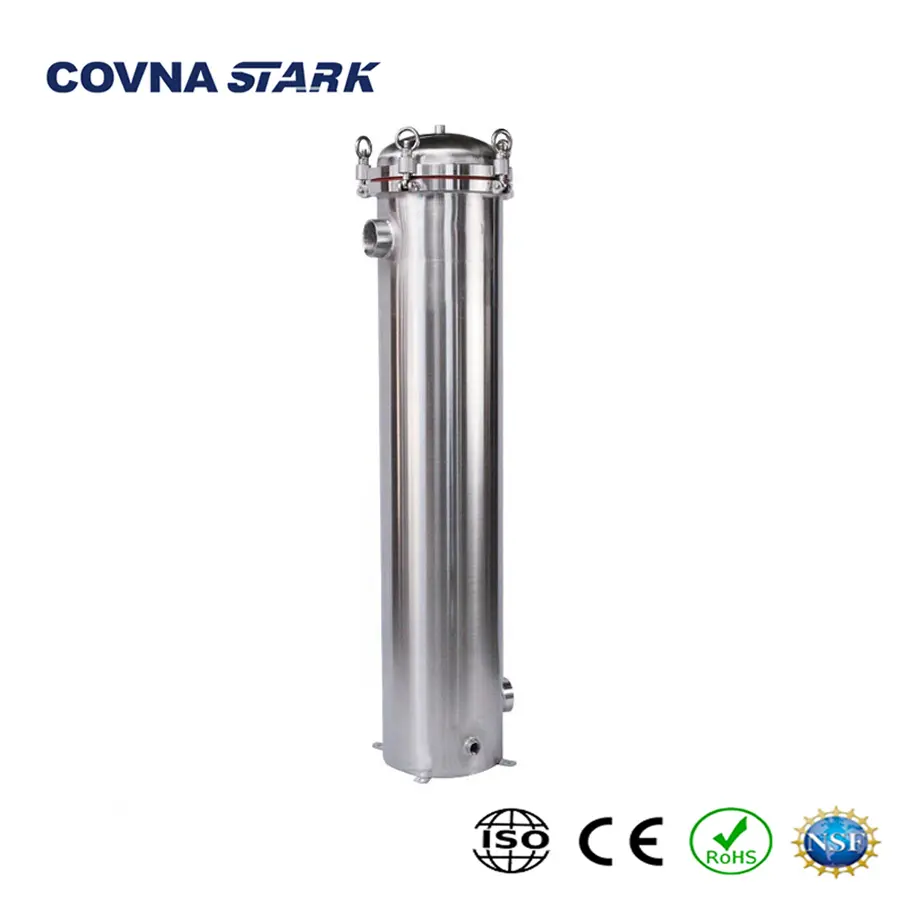

The Bag Filter is designed for high-efficiency liquid filtration in a wide range of industrial, food, and pharmaceutical applications.
Featuring a clamp-style housing that simplifies bag replacement, this filter ensures minimal downtime and maintains hygienic conditions.
Its robust stainless steel construction (SUS304/SUS316L) guarantees excellent corrosion resistance and durability under a working pressure of 0.7 MPa.
- Material: SUS304 / SUS316L stainless steel
- Working Pressure: 0.7 MPa
- Design: Flat top, single bag, clamp-style closure
- Surface Finish: Options for glass or matte polish
Key Features & Benefits
- Clamp-Style Housing: Facilitates rapid filter bag replacement and easy maintenance.
- Efficient Filtration: Direct flow design ensures uniform filtration and minimal pressure drop.
- Hygienic Construction: Smooth welds and sanitary finishes minimize residue buildup and contamination risks.
- Robust Durability: Reliable performance under 0.7 MPa for demanding applications.
Material Structure & Reinforcement
- Stainless Steel Body: High-grade SUS304/SUS316L provides long-term corrosion resistance.
- Single Bag Setup: Designed to accommodate one high-performance filter bag for targeted filtration.
- Surface Finish: Available in glass or matte polish to meet hygienic and aesthetic requirements.
Quality & Assembly Control
- Pressure-tested to operate at 0.7 MPa with a burst margin of at least 4x working pressure.
- Precision checks ensure proper clamp alignment and leak-proof sealing.
- Meets NSF, CE, and ISO9001 standards for global market acceptance.
Product Parameter
General Specifications
- Material: SUS304 / SUS316L stainless steel
- Working Pressure: 0.7 MPa
- Design: Flat top, single bag, clamp-style closure
- Surface Finish: Glass or matte polish
Technical Parameter
| Model | Diameter (mm) | Filter Bag No. | Flow Reference (m³/h) | Housing Thickness (mm) | Effective Height (mm) | Inlet/Outlet Size |
|---|---|---|---|---|---|---|
| BF-0.5 | 159 | 1 | 1.5 | 2.0 | 1100 | 1.5" |
| BF-1 | 219 | 3 | 3.0 | 2.0 | 1300 | 1.5" |
| BF-2 | 273 | 5 | 5.0 | 2.5 | 1500 | 2" |
| BF-3 | 325 | 7 | 8.0 | 3.0 | 1700 | 2" |
| BF-5 | 377 | 10 | 10.0 | 3.0 | 1900 | 2.5" |
Applicable Industry
Our Bag Filter – Clamp-Style offers efficient and hygienic liquid filtration across multiple industries:
- Food & Beverage: Filtration of juices, edible oils, syrups, and cleaning solutions.
- Pharmaceutical & Biotech: Pre-filtration for water for injection (WFI) and other sterile processes.
- Industrial Water Treatment: Pre-filtration in RO systems, cooling tower water, and process water stabilization.
- Chemical Processing: Clarification of solvents, acids, and corrosive liquids using specialized filter bags.
