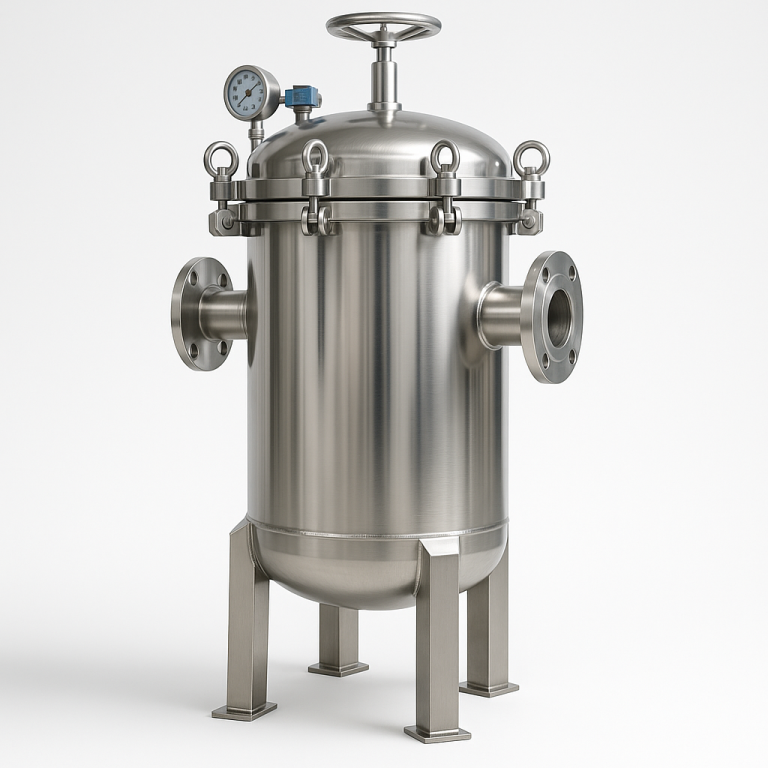

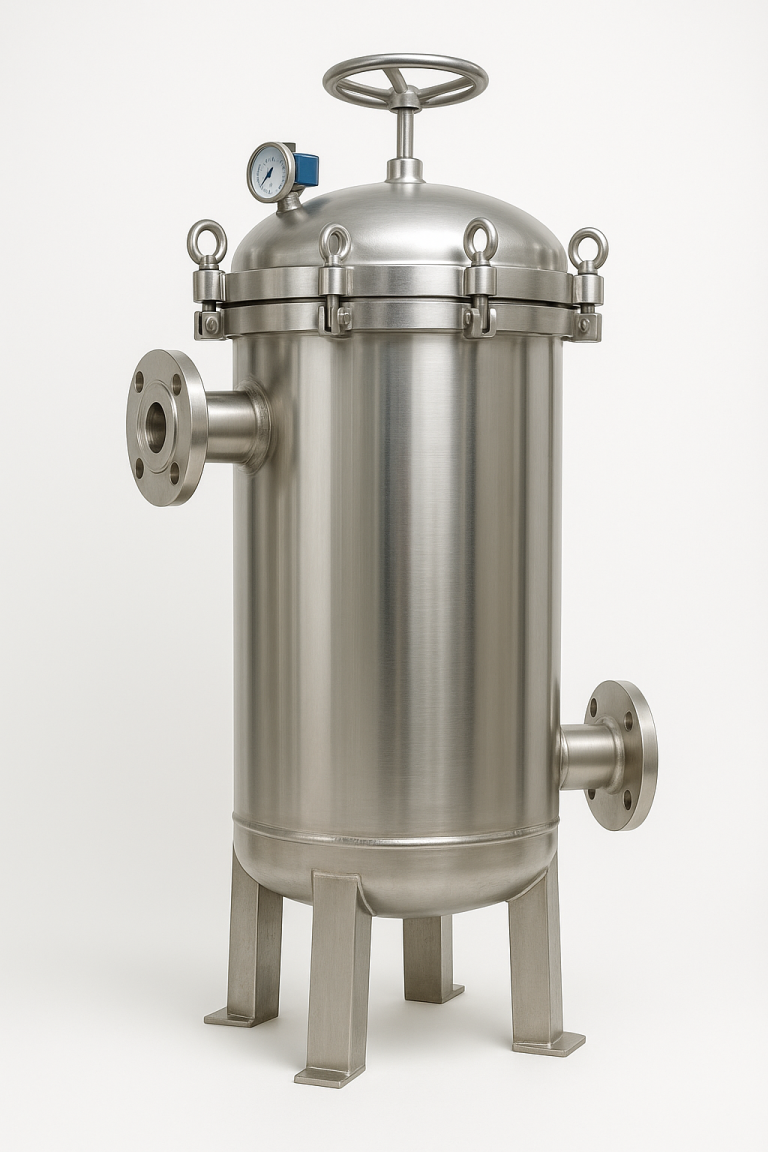

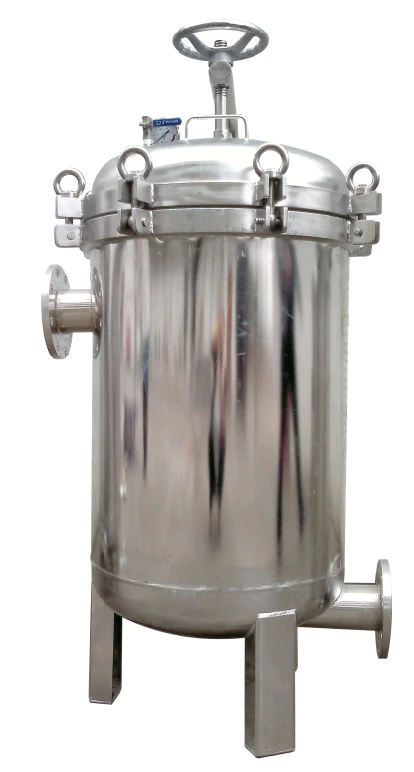

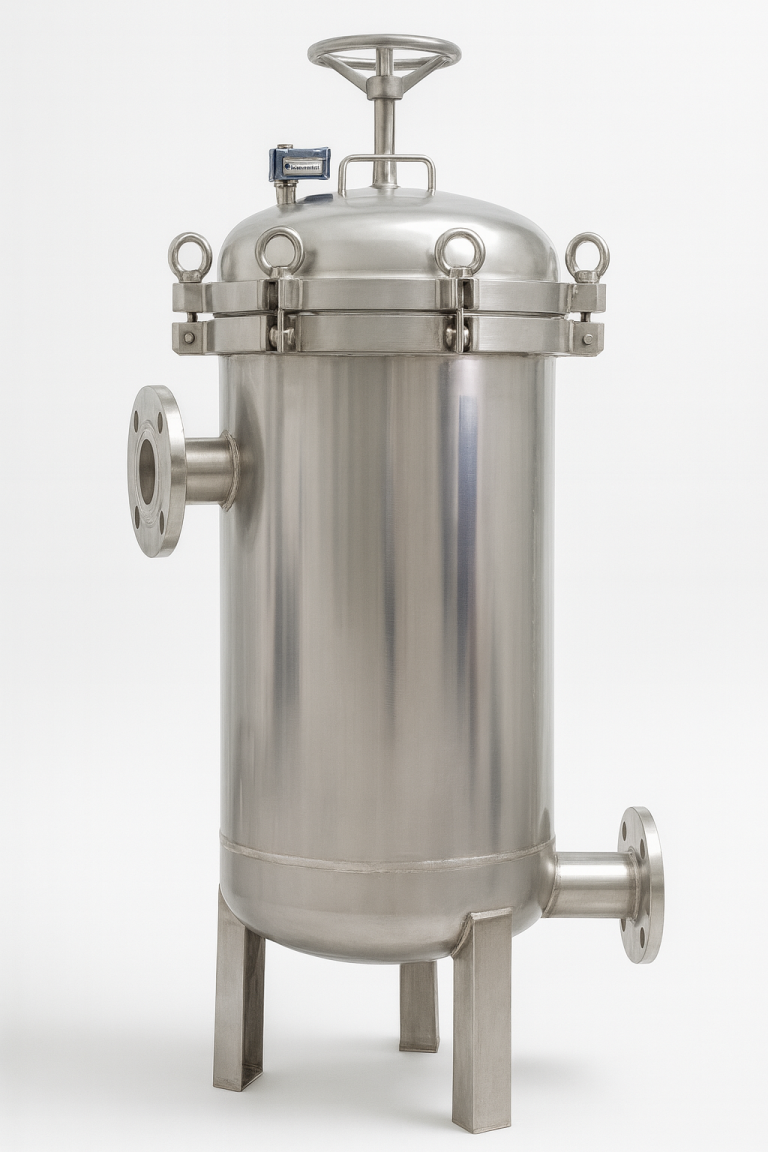

STK6 Series Fast Opening Multi-Bag Filter Housing with Rocker Arm (High Flow)
STK6 Series Fast Opening Multi-Bag Filter Housing with Rocker Arm (High Flow)
The STK6 Series is a high-capacity multi-bag filter housing engineered for large-scale industrial filtration. It features a specialized Fast-Loading Rocker Arm (Davit) mechanism, allowing a single operator to open and close the heavy cover quickly and safely without specialized tools. Ideal for applications requiring high flow rates and frequent bag changes.
- Mechanism: Quick-Opening Rocker Arm (Davit).
- Capacity: 2 to 10 bags (Large Scale).
- Flow Rate: 60 m³/h to 300 m³/h.
- Mounting: Floor-standing with integrated feet.
The STK6 Series is a high-capacity multi-bag filter housing engineered for large-scale industrial filtration. It features a specialized Fast-Loading Rocker Arm (Davit) mechanism, allowing a single operator to open and close the heavy cover quickly and safely without specialized tools. Ideal for applications requiring high flow rates and frequent bag changes.
- Mechanism: Quick-Opening Rocker Arm (Davit).
- Capacity: 2 to 10 bags (Large Scale).
- Flow Rate: 60 m³/h to 300 m³/h.
- Mounting: Floor-standing with integrated feet.
Product Overview
The STK6 Fast Loading Series solves the challenge of maintaining large multi-bag vessels. Traditional bolted covers are heavy and time-consuming to open. The STK6 utilizes a precision-engineered Rocker Arm / Davit assembly combined with a quick-release eyebolt system. This design enables rapid access to the filter bags, significantly reducing downtime during maintenance cycles.
Key Features & Advantages
- Fast Loading Mechanism: The integrated rocker arm allows the cover to be lifted and swung aside effortlessly by hand wheel or hydraulic aid, eliminating the need for an overhead crane during routine maintenance.
- High Flow Capacity: With configurations supporting up to 10 filter bags in a single vessel, the STK6 can process up to 300 m³/h, making it suitable for centralized filtration systems.
- Secure Sealing: Despite the quick-opening feature, the housing maintains a robust seal capable of withstanding high operating pressures, ensuring zero bypass.
- Stable Installation: Equipped with heavy-duty fixed support legs (feet), ensuring stability on the factory floor without the need for complex mounting structures.
Structure & Material
Manufactured from premium SUS304 or SUS316L stainless steel, the housing offers excellent corrosion resistance. The inlet/outlet flange sizes range from 3" to 8" to match large-diameter industrial piping.
Technical Specifications (STK6 Fast Loading Series)
Standard specifications for STK6 Rocker Arm models. Designed for high-volume efficiency.
| Model | Bag Qty | Diameter | In/Outlet | Flow Rate | Thickness |
|---|---|---|---|---|---|
| STK6-Φ450×810×2 | 2 | Φ450 | 3" | 60 m³/h | 1.5mm |
| STK6-Φ500×810×3 | 3 | Φ500 | 3" | 90 m³/h | 2.0mm |
| STK6-Φ550×810×4 | 4 | Φ550 | 4" | 120 m³/h | 2.0mm |
| STK6-Φ600×810×4 | 4 | Φ600 | 4" | 120 m³/h | 2.0mm |
| STK6-Φ650×810×5 | 5 | Φ650 | 5" | 150 m³/h | 2.0mm |
| STK6-Φ700×810×6 | 6 | Φ700 | 5" | 180 m³/h | 2.0mm |
| STK6-Φ750×810×8 | 8 | Φ750 | 6" | 240 m³/h | 2.0mm |
| STK6-Φ800×810×9 | 9 | Φ800 | 6" | 270 m³/h | 2.0mm |
| STK6-Φ900×810×10 | 10 | Φ900 | 8" | 300 m³/h | 2.0mm |
* Note: Equipped with Rocker Arm mechanism for safe and fast operation.
Typical Applications
The high-capacity STK6 Series is the preferred choice for large-scale industrial projects requiring continuous high flow:
- Desalination Plants: Large-scale seawater pre-filtration (SWRO).
- Power Generation: Condensate polishing and cooling water filtration.
- Oil & Gas: Produced water filtration and amine filtration.
- Automotive Manufacturing: Centralized filtration for degreasing and phosphating lines.
- Large Chemical Plants: Bulk chemical transfer and purification.
