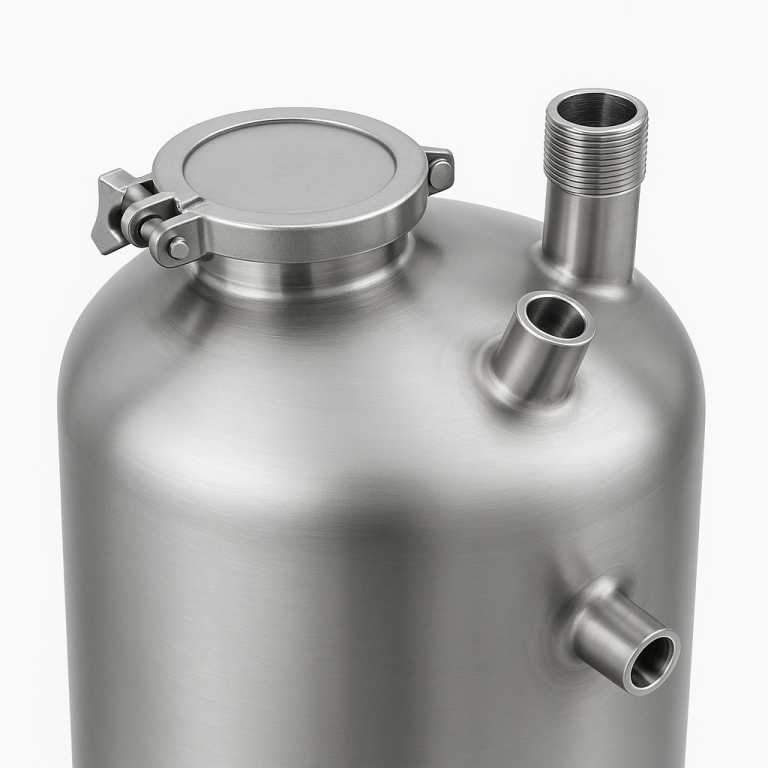

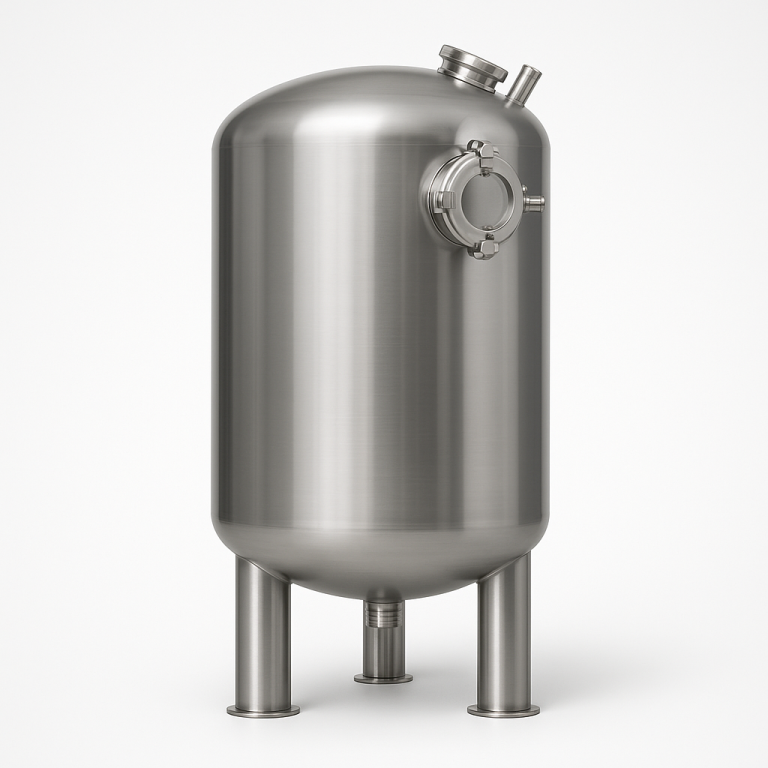

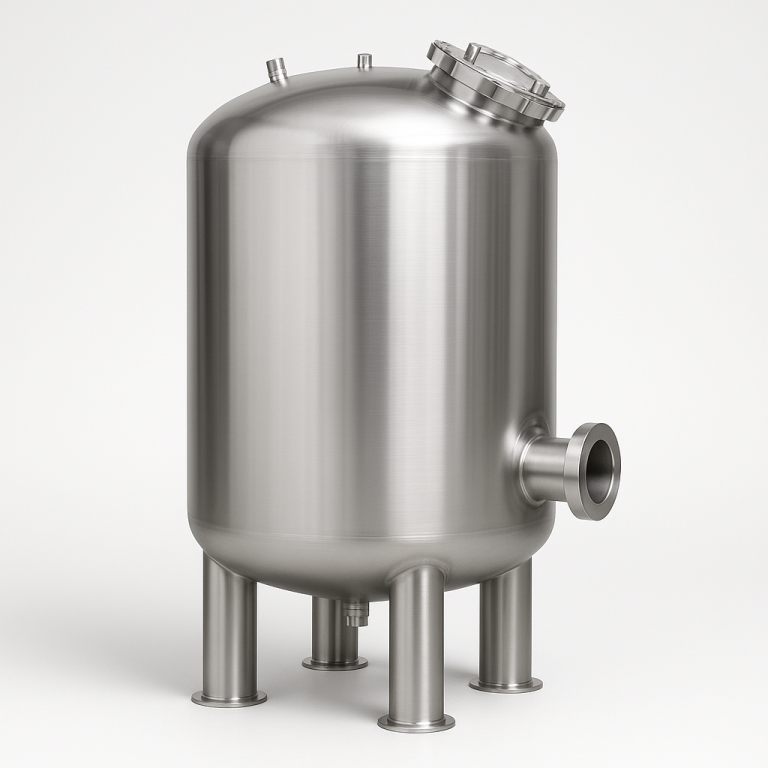

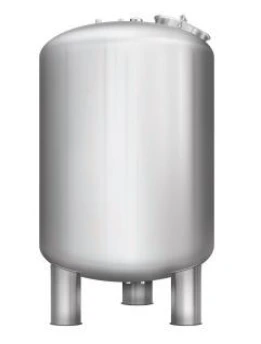

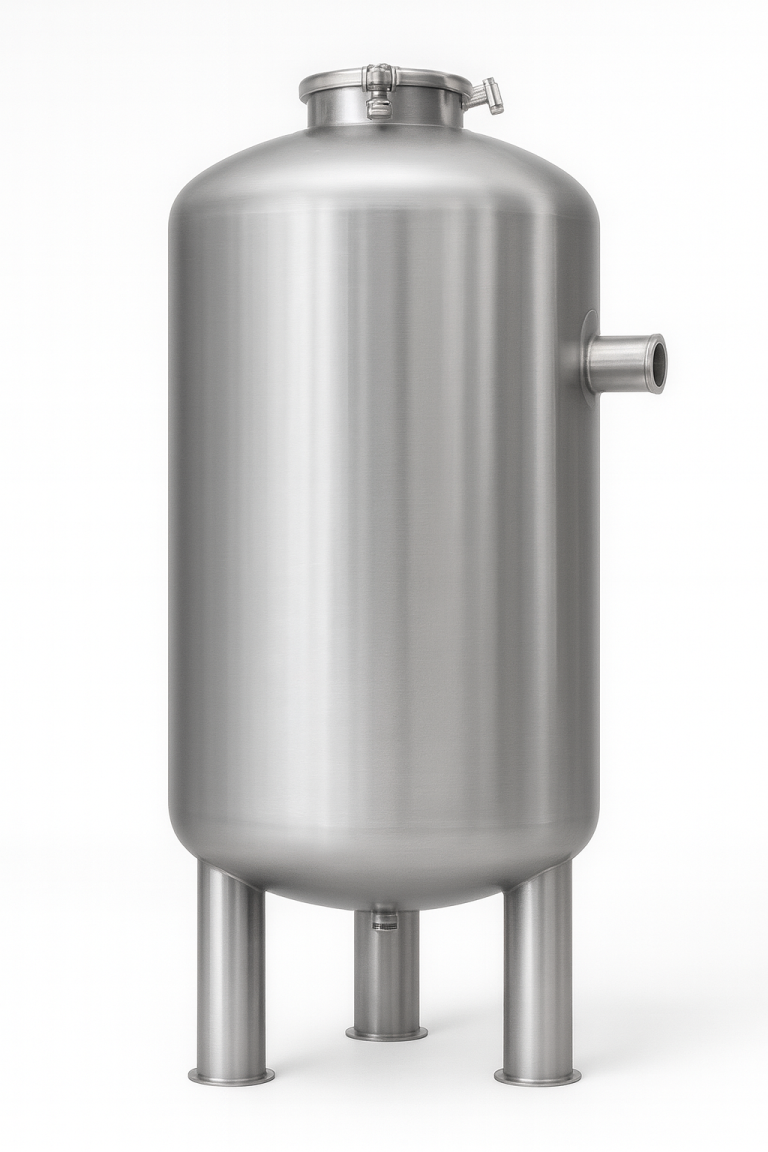

STK2 Series Large Capacity Sterile Water Tank (Dished Head Stainless Steel Vessel)
STK2 Series Large Capacity Sterile Water Tank (Dished Head Stainless Steel Vessel)
The STK2 Series is a heavy-duty Sterile Water Tank featuring top and bottom Dished Heads (Torispherical/Ellipsoidal). This geometry offers superior structural strength and pressure resistance compared to flat or conical tanks, making it ideal for large-scale storage (up to 20 tons). Manufactured strictly for sanitary applications.
- Structure: Dished Head Top & Bottom (High Strength).
- Capacity Range: 0.5T to 20T (Large Scale).
- Material: SUS304 / SUS316L Stainless Steel.
- Wall Thickness: Up to 3.0mm for robust durability.
The STK2 Series is a heavy-duty Sterile Water Tank featuring top and bottom Dished Heads (Torispherical/Ellipsoidal). This geometry offers superior structural strength and pressure resistance compared to flat or conical tanks, making it ideal for large-scale storage (up to 20 tons). Manufactured strictly for sanitary applications.
- Structure: Dished Head Top & Bottom (High Strength).
- Capacity Range: 0.5T to 20T (Large Scale).
- Material: SUS304 / SUS316L Stainless Steel.
- Wall Thickness: Up to 3.0mm for robust durability.
Product Overview
The STK2 Dished Head Sterile Tank is the industry standard for medium-to-large scale purified water storage. The curved "dished" head design distributes internal pressure more evenly than other shapes, allowing for larger volumes without compromising structural integrity. This series is designed for central water systems in pharmaceutical, food processing, and chemical industries.
Key Features & Advantages
- Structural Integrity: The dished head design provides enhanced pressure bearing capacity and aesthetic appeal. For models 5T and above, the wall thickness is increased to 3.0mm to ensure maximum safety and longevity.
- Sanitary Preservation: Like the STK1 series, the STK2 is sealed to maintain sterility. The interior is polished to eliminate biofilm adhesion, ensuring the water quality remains consistent during storage.
- Large Capacity Options: With standard models reaching up to 20,000 Liters (20T), this series serves as an excellent central buffer tank for high-output water generation systems.
- Customizable Connections: Inlet/Outlet sizes increase with tank capacity (up to 2") to match high-flow distribution pumps.
Technical Specifications (STK2 Dished Head Series)
Standard dimensions and capacities for STK2 sanitary storage tanks.
| Model | Volume (Capacity) | Diameter | Height (Approx.) | Thickness | In/Outlet |
|---|---|---|---|---|---|
| STK-WT-0.5T | 0.5 m³ | Φ800 | 1220 mm | 1.5mm | 1" |
| STK-WT-0.6T | 1.0 m³ | Φ1000 | 1220 mm | 1.5mm | 1" |
| STK-WT-0.7T | 1.5 m³ | Φ1200 | 1220 mm | 2.0mm | 1" |
| STK-WT-2T | 2.0 m³ | Φ1200 | 1500 mm | 2.0mm | 1" |
| STK-WT-3T | 3.0 m³ | Φ1400 | 1500 mm | 2.0mm | 1" |
| STK-WT-4T | 4.0 m³ | Φ1500 | 2000 mm | 2.0mm | 1" |
| STK-WT-5T | 5.0 m³ | Φ1600 | 2000 mm | 3.0mm | 1" |
| STK-WT-6T | 6.0 m³ | Φ1800 | 2000 mm | 3.0mm | 1.5" |
| STK-WT-8T | 8.0 m³ | Φ2000 | 2000 mm | 3.0mm | 1.5" |
| STK-WT-10T | 10 m³ | Φ2200 | 2000 mm | 3.0mm | 1.5" |
| STK-WT-15T | 15 m³ | Φ2400 | 2440 mm | 3.0mm | 1.5" |
| STK-WT-20T | 20 m³ | Φ2600 | 3000 mm | 3.0mm | 2" |
* Note: "T" refers to capacity (Tons/Cubic Meters). Larger models (5T+) feature reinforced 3.0mm thickness.
Typical Applications
The STK2 Large Capacity series is ideal for centralized storage in high-volume facilities:
- Central Pure Water Systems: Main storage for large pharmaceutical or electronic factories.
- Beverage Production: Bulk storage of treated water for bottling lines.
- Food Processing: Large-scale ingredient water storage (Dairy, Breweries).
- Chemical Storage: Safe containment of liquid raw materials or finished products.
