The STARK Fast-Loading Cartridge Filter Housing is designed for maximum operational efficiency. It features a robust swingbolt quick-closure system for rapid, tool-free filter changes and integrated stainless steel legs for stable, independent floor mounting without additional support structures. Ideal for modular skids and space-constrained industrial environments.
The STARK Fast-Loading Cartridge Filter Housing is designed for maximum operational efficiency. It features a robust swingbolt quick-closure system for rapid, tool-free filter changes and integrated stainless steel legs for stable, independent floor mounting without additional support structures. Ideal for modular skids and space-constrained industrial environments.
Engineered for Efficiency: Rapid Maintenance & Easy Installation
The STK Fast-Loading (Swingbolt) Cartridge Filter Housing addresses two critical needs in industrial filtration: minimizing maintenance downtime and simplifying system integration. Its unique design combines the pressure-handling capability of a bolted flange with the speed of a quick-release mechanism, all in a self-supporting, floor-standing package.
Key Design Advantages
1. Fast-Loading Swingbolt Closure (Quick-Access)
Unlike traditional multi-bolt flanges that require significant time to open and close, our housing utilizes a **swingbolt (eye-nut) closure system**. Operators can quickly loosen the nuts by hand (or with a simple tool), swing the bolts out of the way, and lift the cover. This design significantly reduces filter change-out time, boosting overall plant productivity.
2. Floor-Standing with Integrated Legs (Plug-and-Play)

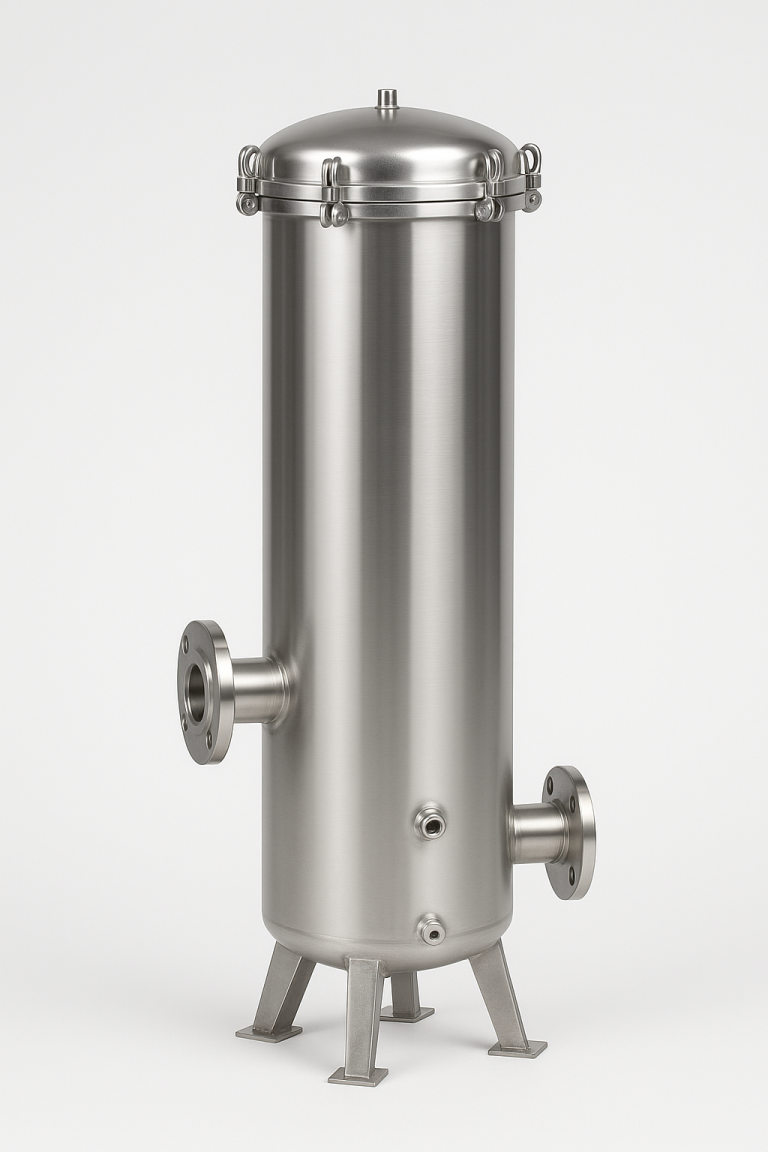

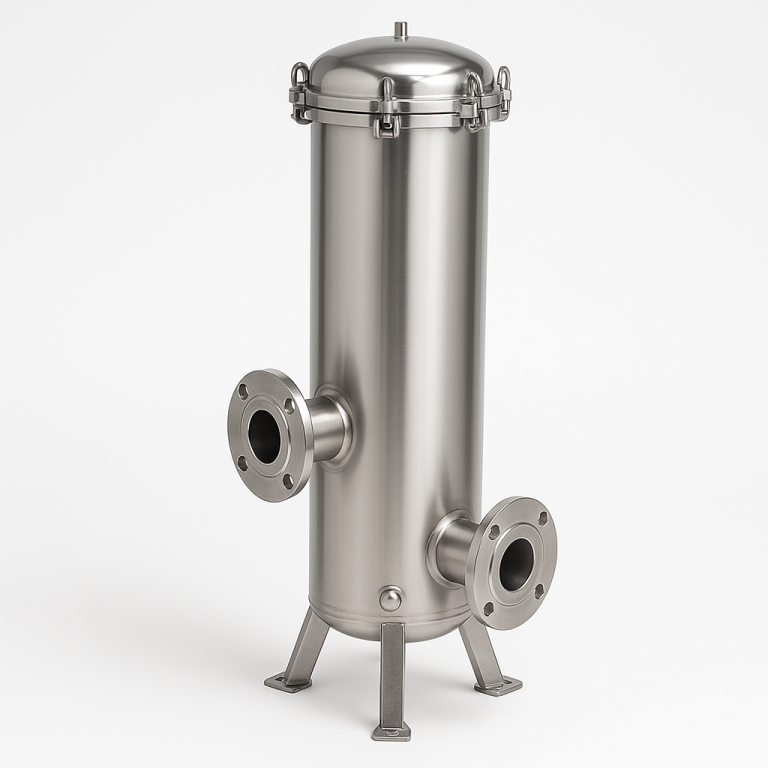

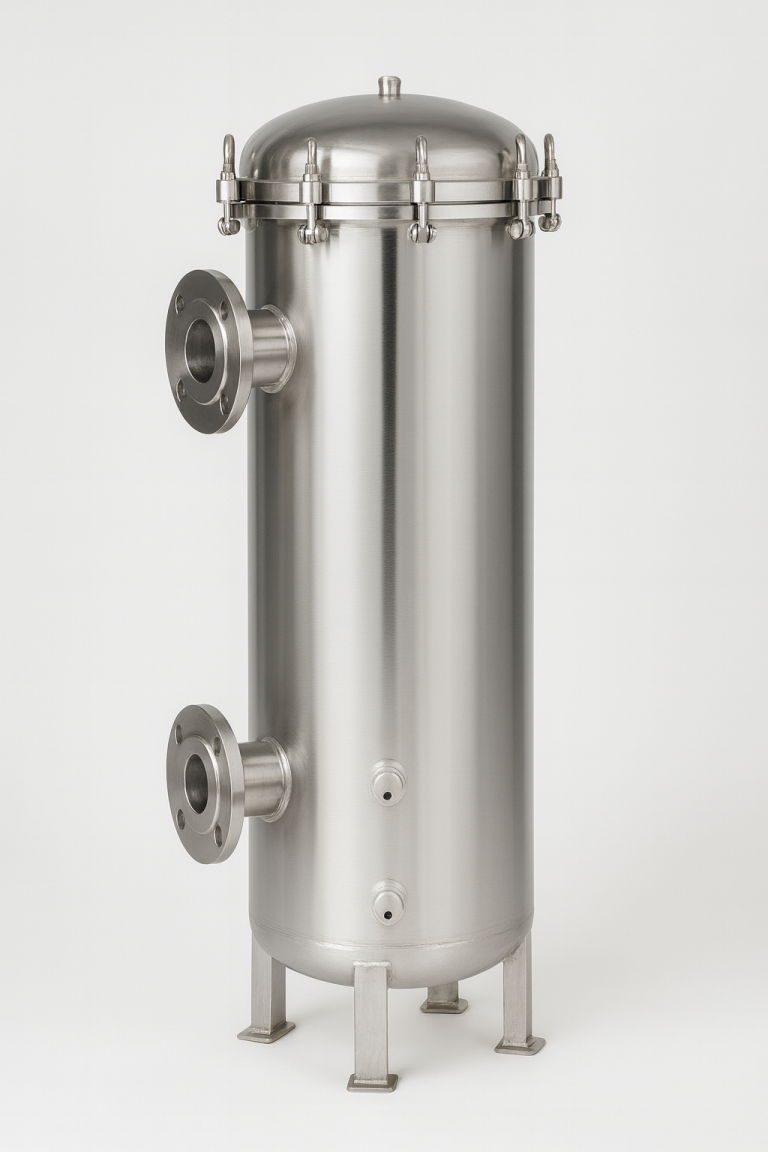

As shown in the product image, the housing rests on sturdy, pre-welded **stainless steel legs**. This eliminates the need for expensive custom support frames or wall mounting, making installation straightforward. It is perfect for standalone filtration units or compact skid-mounted systems.
3. Robust Industrial Construction
Manufactured from high-grade **SUS304 or SUS316L stainless steel**, the housing is built for durability and corrosion resistance. The swingbolt design provides a secure, uniform seal capable of handling standard industrial pressures (typically up to 1.0 MPa) safely and reliably.
4. Versatile Multi-Cartridge Design
Available in various multi-round configurations, it accommodates standard 20", 30", or 40" filter cartridges. The internal design ensures even flow distribution for maximum filtration efficiency and extended cartridge life.
Technical Specifications (STKR Series - Fast Loading with Foot)
Standard specifications for STKR fast-loading cartridge filters. Equipped with support legs.
| Model | Diameter | Thickness | Flow Rate (m³/h) | In/Outlet Diameter | Number of Core |
|---|---|---|---|---|---|
| STKR-9core×20" | Φ273 | 1.5mm | 4.5 | 2" | 9-10 Core |
| STKR-9core×30" | Φ273 | 1.5mm | 6.75 | 2" | 9-10 Core |
| STKR-9core×40" | Φ273 | 1.5mm | 9 | 2" | 9-10 Core |
| STKR-10core×20" | Φ300 | 1.5mm | 5 | 2" | 10-12 Core |
| STKR-10core×30" | Φ300 | 1.5mm | 7.5 | 2" | 10-12 Core |
| STKR-10core×40" | Φ300 | 1.5mm | 10 | 2" | 10-12 Core |
| STKR-12core×30" | Φ325 | 1.5mm | 9 | 2" | 12-15 Core |
| STKR-12core×40" | Φ325 | 1.5mm | 12 | 2" | 12-15 Core |
| STKR-15core×30" | Φ350 | 1.5mm | 11.25 | 2" | 15-17 Core |
| STKR-15core×40" | Φ350 | 1.5mm | 15 | 2" | 15-17 Core |
| STKR-20core×30" | Φ400 | 1.5mm | 15 | 2.5" | 20-22 Core |
| STKR-20core×40" | Φ400 | 1.5mm | 20 | 2.5" | 20-22 Core |
| STKR-25core×40" | Φ450 | 1.5mm | 25 | 2.5" | 25-27 Core |
| STKR-35core×40" | Φ500 | 2.0mm | 35 | 3" | 35-38 Core |
| STKR-45core×40" | Φ600 | 2.0mm | 45 | 3" | 40-45 Core |
| STKR-55core×40" | Φ700 | 2.0mm | 55 | 4" | 55-60 Core |
* Note: Fast-loading structure with feet. Flow rates are theoretical for water treatment.
Ideal for Applications Requiring Frequent Access & Easy Install
The fast-loading and floor-standing design makes the STK-FLF series perfect for dynamic industrial environments:
- Skid-Mounted Systems:
Integrated legs allow for easy mounting on modular water treatment or process skids with limited space.
- Batch Processing Industries:
Chemical, paint, and ink manufacturing where filters need to be changed frequently between batches.
- General Industrial Water:
Filtration of cooling water, process water, and utility water in factories where quick maintenance is valued.
- Food & Beverage (Non-Sanitary Areas):
Utility water filtration or pre-filtration stages where a robust, easy-to-access housing is required.
