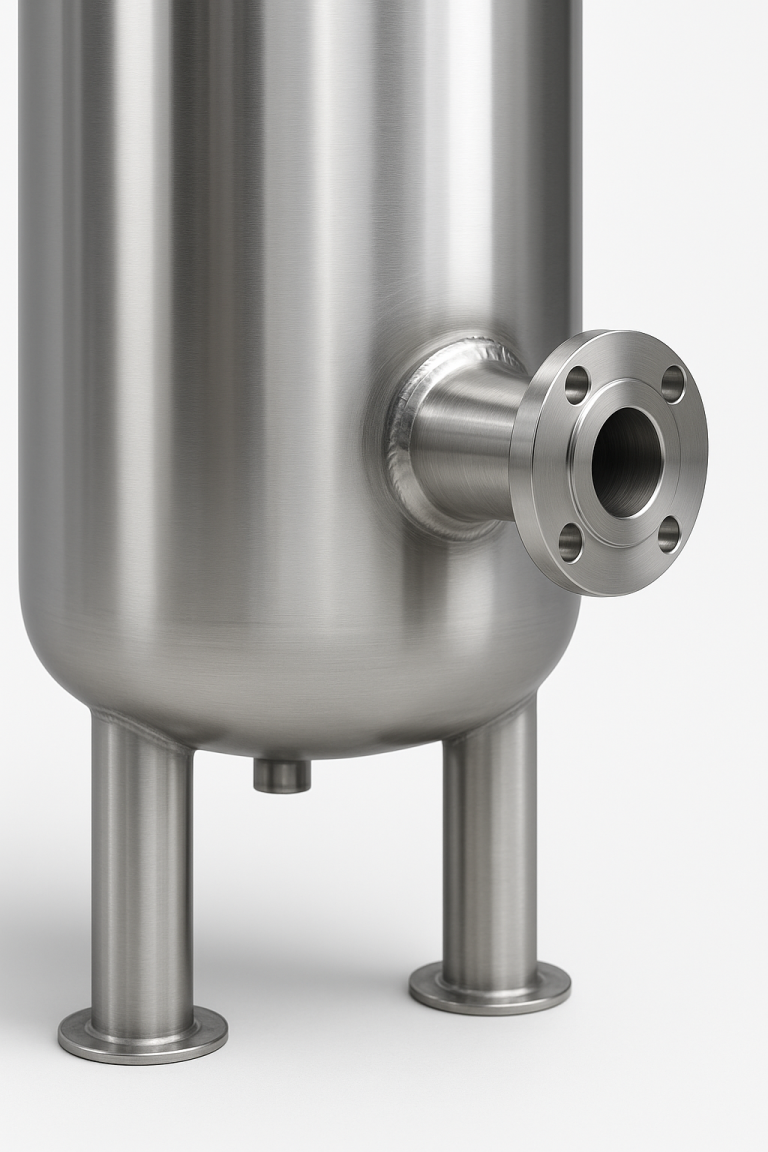

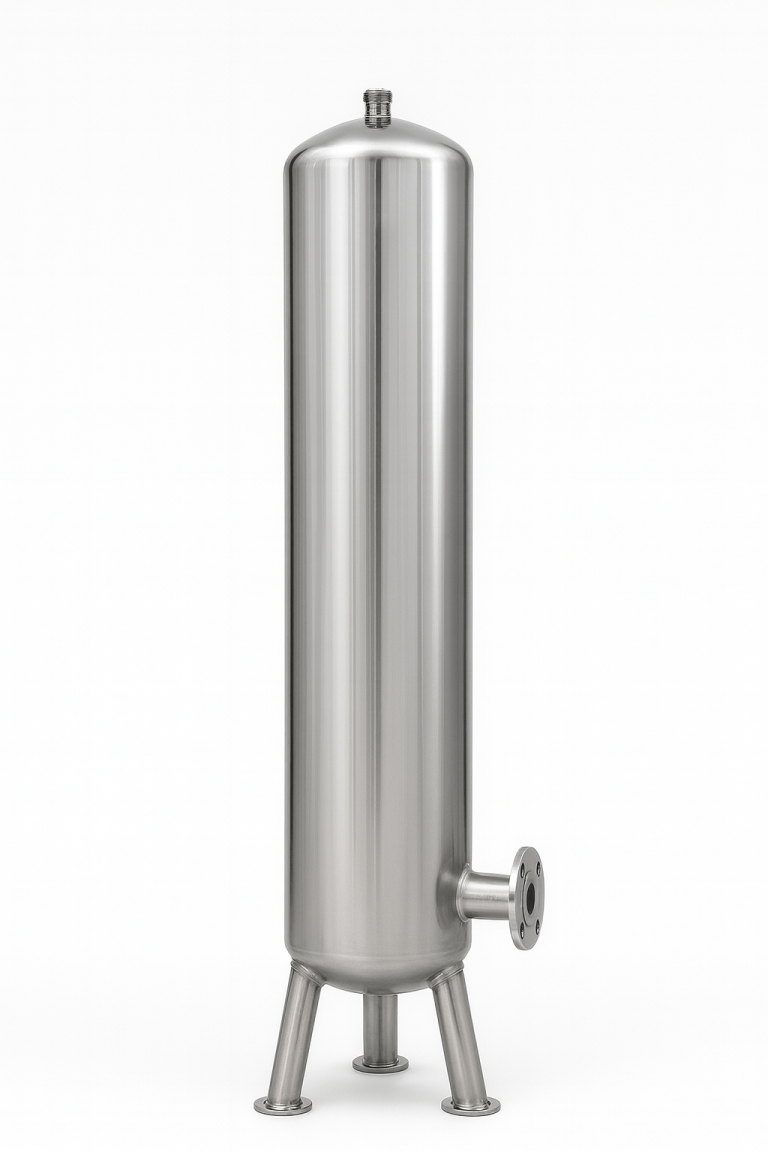

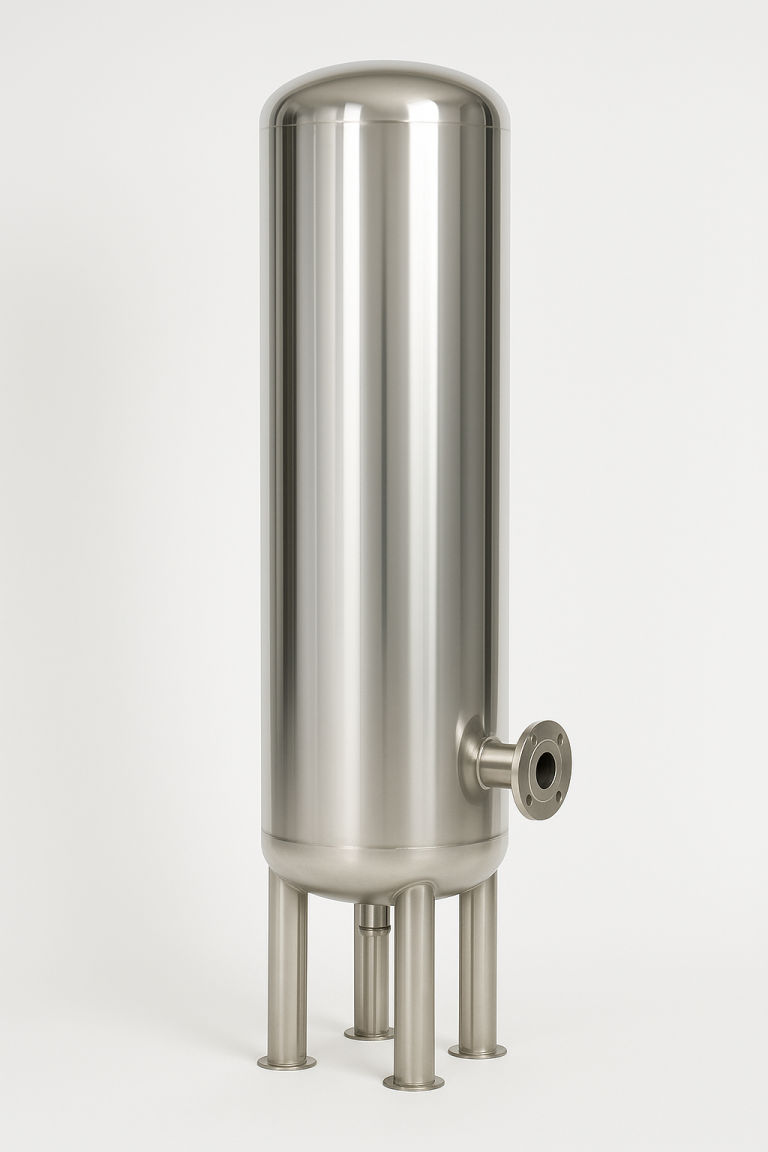

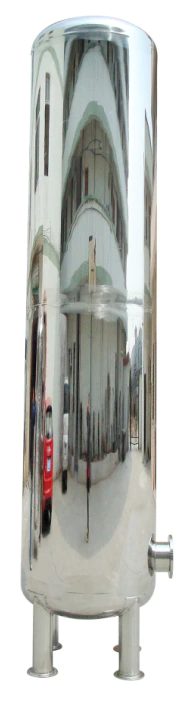

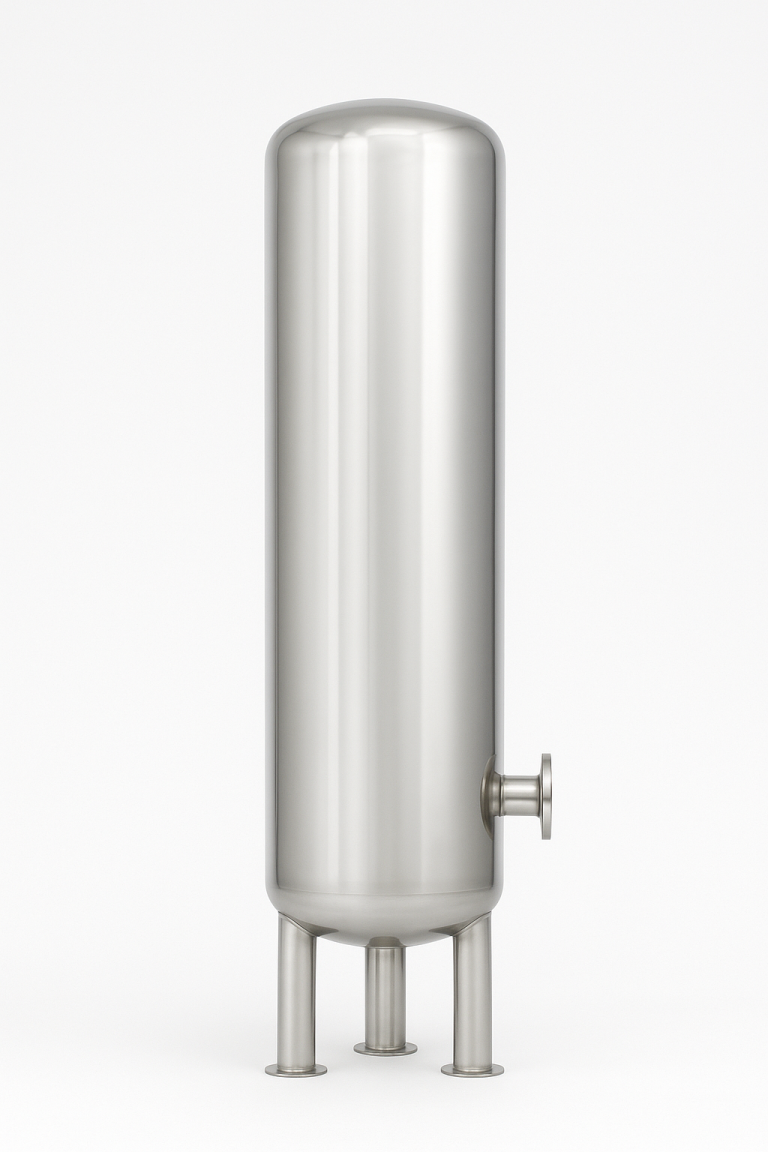

STK Series Stainless Steel Ozone Mixing Tower (Oxidation Contact Tank with Aeration)
STK Series Stainless Steel Ozone Mixing Tower (Oxidation Contact Tank with Aeration)
The STK Series Ozone Mixing Tower is a specialized stainless steel vessel designed to maximize the dissolution of ozone gas into water. By utilizing bottom-mounted Titanium Aeration Heads and a high height-to-diameter ratio, it ensures extended contact time and superior oxidation efficiency. Essential for sterilization, decolorization, and COD degradation.
- Mixing Method: Microporous Aeration (Bottom-up).
- Material: Ozone-resistant SUS304 or SUS316L.
- Efficiency: High aspect ratio design for maximum contact time.
- Capacity: 0.5 m³/h to 60 m³/h.
The STK Series Ozone Mixing Tower is a specialized stainless steel vessel designed to maximize the dissolution of ozone gas into water. By utilizing bottom-mounted Titanium Aeration Heads and a high height-to-diameter ratio, it ensures extended contact time and superior oxidation efficiency. Essential for sterilization, decolorization, and COD degradation.
- Mixing Method: Microporous Aeration (Bottom-up).
- Material: Ozone-resistant SUS304 or SUS316L.
- Efficiency: High aspect ratio design for maximum contact time.
- Capacity: 0.5 m³/h to 60 m³/h.
Product Overview
The STK Ozone Oxidation Tower (also known as a Reaction Tank or Contact Tower) serves as the core component in ozone water treatment systems. Its primary function is to mix ozone gas generated by an ozonator with water uniformly. The tower creates a pressurized environment where ozone micro-bubbles rise slowly against the water flow, ensuring complete mass transfer and reaction.
Key Features & Advantages
- Optimized Aeration System: Equipped with premium Titanium Powder Sintered Aeration Heads (or Corundum inputs) at the bottom. These heads generate micro-bubbles (microns in size), drastically increasing the gas-liquid contact surface area compared to standard diffusers.
- Extended Contact Time: The tower features a slim, tall design (Height up to 5100mm). This high aspect ratio prevents the "short-circuiting" of water flow and ensures sufficient reaction time for the ozone to kill bacteria and oxidize pollutants.
- Corrosion Resistance: Ozone is a strong oxidant. Our towers are manufactured from high-grade 304 or 316L stainless steel, specifically welded and passivated to resist ozone corrosion and prevent leakage.
- Safety & Venting: Designed with a top exhaust port to connect with an ozone destructor, ensuring safe discharge of undissolved gas.
Working Principle
Water enters from the top, while ozone gas is injected from the bottom aeration heads. This counter-current flow allows the rising bubbles to mix thoroughly with the downward-flowing water, achieving the highest possible dissolved ozone concentration.
Technical Specifications (STK Ozone Mixing Series)
Standard specifications for Ozone Mixing Towers. Aeration heads included.
| Model | Flow Rate | Diameter | Height (mm) | Thickness | In/Outlet | Aeration Heads (Qty) |
|---|---|---|---|---|---|---|
| STK-Φ300x2500 | 0.5-1 m³/h | Φ300 | 2500 | 1.2mm | 1" | 1 |
| STK-Φ350x3000 | 1 m³/h | Φ350 | 3000 | 1.2mm | 1.25" | 1 |
| STK-Φ400x3200 | 2 m³/h | Φ400 | 3200 | 1.5mm | 1.25" | 2 |
| STK-Φ500x3500 | 3-4 m³/h | Φ500 | 3500 | 1.5mm | 2" | 3 |
| STK-Φ600x3600 | 5-6 m³/h | Φ600 | 3600 | 1.5mm | 2" | 5 |
| STK-Φ800x3800 | 8-9 m³/h | Φ800 | 3800 | 2.0mm | 2" | 8 |
| STK-Φ1000x4000 | 9-11 m³/h | Φ1000 | 4000 | 2.5mm | 2" | 10 |
| STK-Φ1200x4200 | 12-20 m³/h | Φ1200 | 4200 | 2.5mm | 2.5" | 12 |
| STK-Φ1400x4500 | 20-25 m³/h | Φ1400 | 4500 | 3.0mm | 2.5" | 14 |
| STK-Φ1800x5000 | 40-50 m³/h | Φ1800 | 5000 | 3.0mm | 4" | 20 |
| STK-Φ2000x5100 | 50-60 m³/h | Φ2000 | 5100 | 4.0mm | 4" | 22 |
* Note: Includes internal aeration distribution system. Material and connection types can be customized.
Typical Applications
- Bottled Water Production: Sterilization and shelf-life extension.
- Wastewater Treatment: Degradation of COD/BOD and bleaching of textile wastewater.
- Swimming Pools: Advanced oxidation to reduce chlorine usage and smell.
- Food Processing: Disinfection of process water and rinsing of vegetables.
