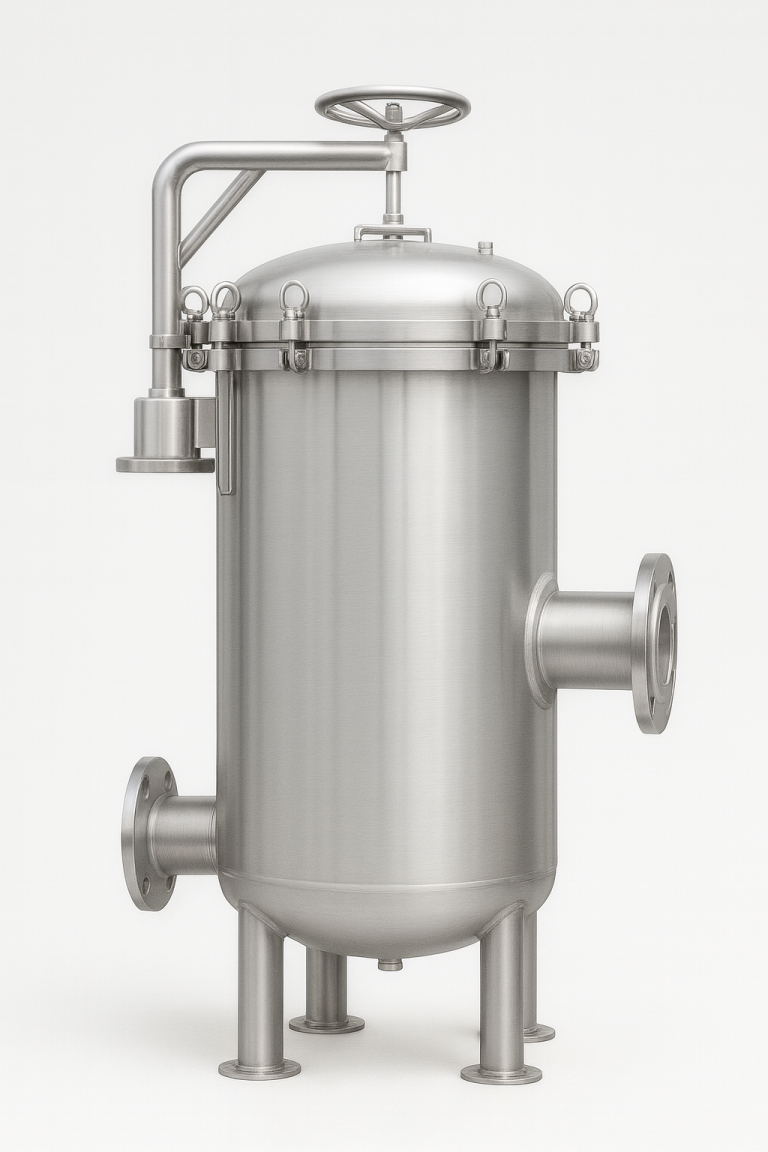

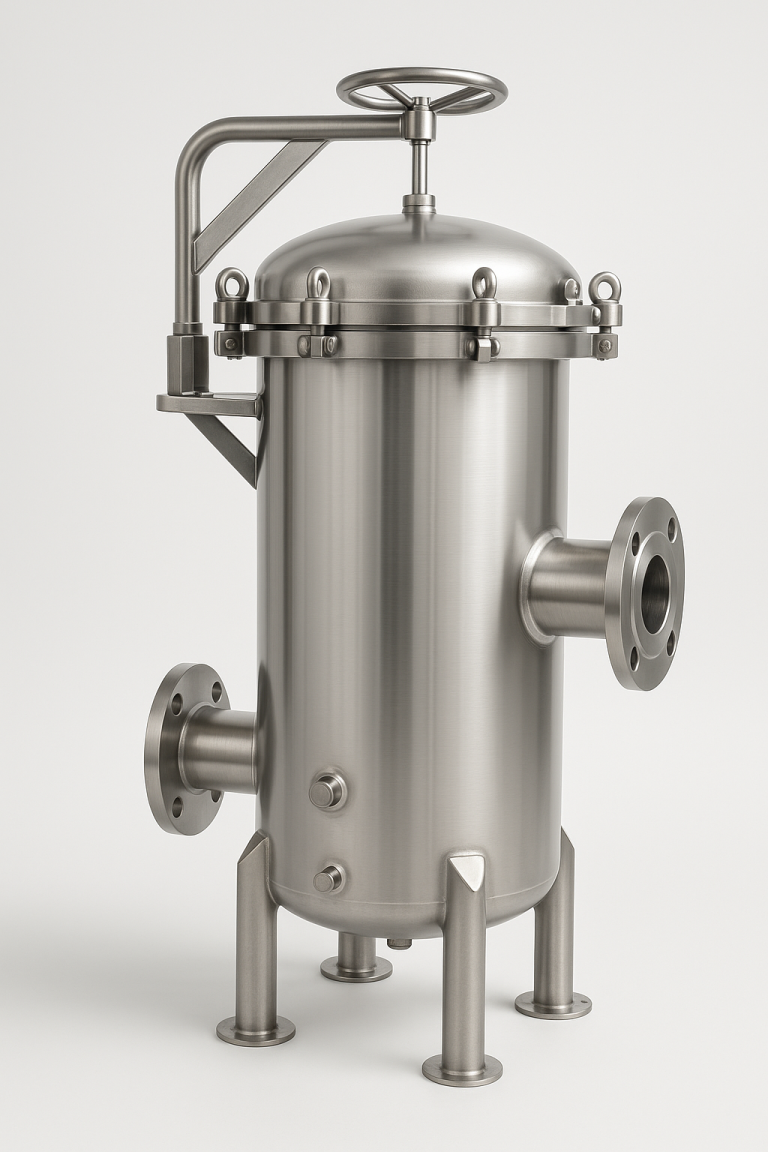

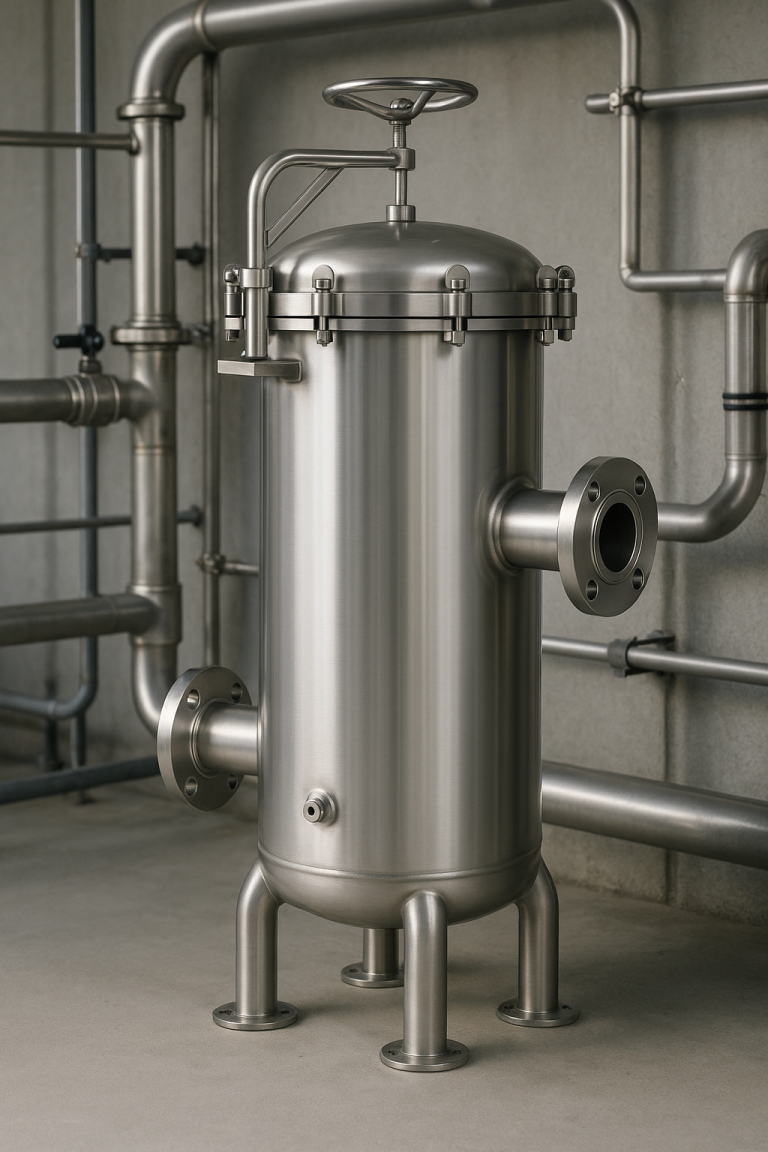

STK High-Flow Fast-Loading Cartridge Filter Housing (Swing-Bolt Closure with Legs)
STK High-Flow Fast-Loading Cartridge Filter Housing (Swing-Bolt Closure with Legs)
The STARK Fast-Loading (Swing-Bolt) Cartridge Filter Housing is engineered for maximum operational efficiency in high-flow industrial applications. It combines a robust quick-opening swing-bolt closure for rapid filter changes with integrated stainless steel legs for stable, plug-and-play floor mounting. Capable of handling flows up to 120 m³/h with a design pressure of 0.6 MPa.
The STARK Fast-Loading (Swing-Bolt) Cartridge Filter Housing is engineered for maximum operational efficiency in high-flow industrial applications. It combines a robust quick-opening swing-bolt closure for rapid filter changes with integrated stainless steel legs for stable, plug-and-play floor mounting. Capable of handling flows up to 120 m³/h with a design pressure of 0.6 MPa.
Engineered for Speed: High-Flow Filtration with Rapid Maintenance
The STK Fast-Loading Cartridge Filter Housing (STK-B-Q Series) is designed for industrial processes where minimizing downtime is critical. By utilizing a robust swing-bolt (eye-nut) closure system instead of a standard bolted flange, filter change-out times are drastically reduced, while still maintaining a secure seal for large-volume filtration.
Key Design Advantages
1. Rapid-Access Swing-Bolt Closure
Time is money. Our high-flow housings feature heavy-duty stainless steel **swing-bolts and eye-nuts**. Operators can quickly loosen the nuts using a simple tool and swing the bolts aside to lift the heavy cover (davit arm included for larger models). This design is significantly faster than removing dozens of individual flange bolts, making it ideal for applications requiring frequent cartridge replacement.
2. Floor-Standing with Integrated Legs
Designed for easy integration, these vessels come with pre-welded, structurally sound **stainless steel legs**. This allows for immediate, stable floor mounting or integration onto process skids without the need for additional support fabrication.
3. Massive Scalability for High Flow Rates
As detailed in the technical parameters, this series offers immense scalability. From smaller units to massive vessels holding up to **120 filter cartridges** with inlet/outlets up to **DN200**, we can handle industrial flow rates up to **120 m³/h** in a single unit.
4. Robust Industrial Construction (0.6 MPa)
Constructed from high-grade SUS304 or SUS316L, these housings are rated for a standard design pressure of **0.6 MPa**. Internal surfaces can be mirror-polished or sandblasted depending on application requirements, ensuring durability and corrosion resistance.
Technical Specifications (STKL Series - Fast Loading with Foot)
Standard specifications for STKL fast-loading cartridge filters. Equipped with support legs.
| Model | Diameter | Thickness | Flow Rate (m³/h) | In/Outlet Diameter | Number of Core |
|---|---|---|---|---|---|
| STKL-9core×20" | Φ273 | 1.5mm | 4.5 | 2" | 9-10 Core |
| STKL-9core×30" | Φ273 | 1.5mm | 6.75 | 2" | 9-10 Core |
| STKL-9core×40" | Φ273 | 1.5mm | 9 | 2" | 9-10 Core |
| STKL-10core×20" | Φ300 | 1.5mm | 5 | 2" | 10-12 Core |
| STKL-10core×30" | Φ300 | 1.5mm | 7.5 | 2" | 10-12 Core |
| STKL-10core×40" | Φ300 | 1.5mm | 10 | 2" | 10-12 Core |
| STKL-12core×30" | Φ325 | 1.5mm | 9 | 2" | 12-15 Core |
| STKL-12core×40" | Φ325 | 1.5mm | 12 | 2" | 12-15 Core |
| STKL-15core×30" | Φ350 | 1.5mm | 11.25 | 2" | 15-17 Core |
| STKL-15core×40" | Φ350 | 1.5mm | 15 | 2" | 15-17 Core |
| STKL-20core×30" | Φ400 | 1.5mm | 15 | 2.5" | 20-22 Core |
| STKL-20core×40" | Φ400 | 1.5mm | 20 | 2.5" | 20-22 Core |
| STKL-25core×40" | Φ450 | 1.5mm | 25 | 2.5" | 25-27 Core |
| STKL-35core×40" | Φ500 | 2.0mm | 35 | 3" | 35-38 Core |
| STKL-45core×40" | Φ600 | 2.0mm | 45 | 3" | 40-45 Core |
| STKL-55core×40" | Φ700 | 2.0mm | 55 | 4" | 55-60 Core |
| STKL-85core×40" | Φ800 | 2.0mm | 85 | 6" | 80-85 Core |
| STKL-100core×40" | Φ900 | 2.0mm | 100 | 6" | 90-100 Core |
* Note: Features fast-loading structure (Rocker arm) with support legs.
Ideal for High-Flow & Frequent Maintenance Applications
The fast-loading swing-bolt design and robust floor-standing construction make this series perfect for:
- Large-Scale Water Treatment:
High-flow pre-filtration for large RO plants or municipal water supply where quick cartridge changes are essential.
- Industrial Process Water Circuits:
Filtration of cooling water, wash water, and utility water in steel mills, paper mills, and chemical plants.
- Batch Processing Industries:
Applications like paint, ink, or chemical manufacturing where filters must be changed rapidly between batches to maintain productivity.
- Skid-Mounted Modular Systems:
The integrated legs allow for easy, stable mounting onto mobile or modular process skids.
