STK Floor-Standing Single Bag Filter Housing (With Integrated Support Legs)
STK Floor-Standing Single Bag Filter Housing (With Integrated Support Legs)
The STARK Floor-Standing Single Bag Filter Housing is designed for rapid, stable installation in any industrial environment. Featuring robust, pre-welded stainless steel legs, this vessel stands independently, eliminating the need for costly custom support frames or complex piping mounts. It combines high-capacity bag filtration with plug-and-play convenience.
The STARK Floor-Standing Single Bag Filter Housing is designed for rapid, stable installation in any industrial environment. Featuring robust, pre-welded stainless steel legs, this vessel stands independently, eliminating the need for costly custom support frames or complex piping mounts. It combines high-capacity bag filtration with plug-and-play convenience.
Engineered for Stability and Easy "Plug-and-Play" Installation
The **STK Floor-Standing Single Bag Filter Housing (STK-B Series)** addresses a common challenge in industrial plant design: how to securely mount filtration equipment without fabricating extra stands. By integrating sturdy support legs directly into the vessel design, we offer a solution that is ready for immediate setup right out of the box.
Key Design Advantages
1. Integrated Floor Stand (No Extra supports Needed)

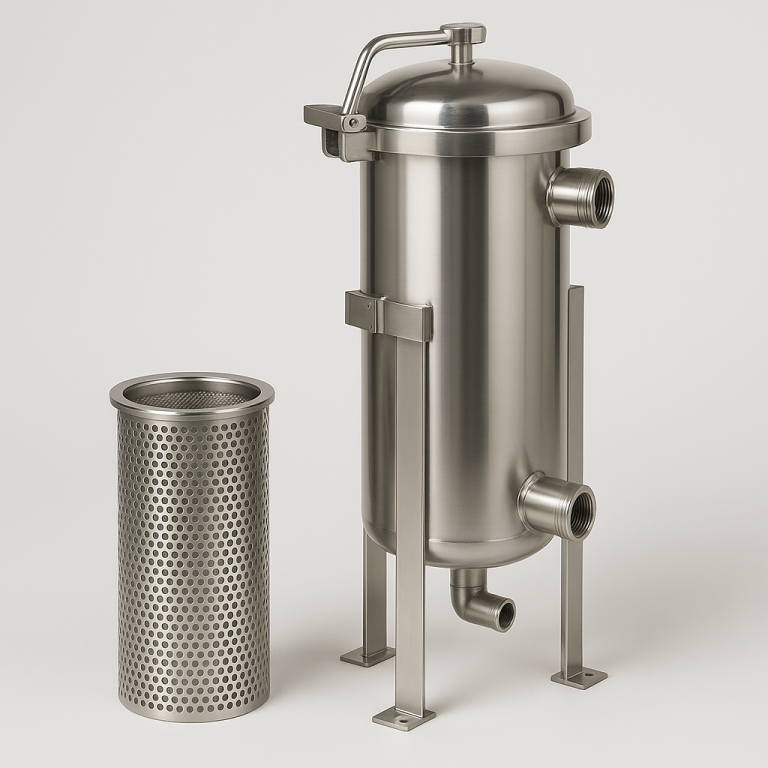

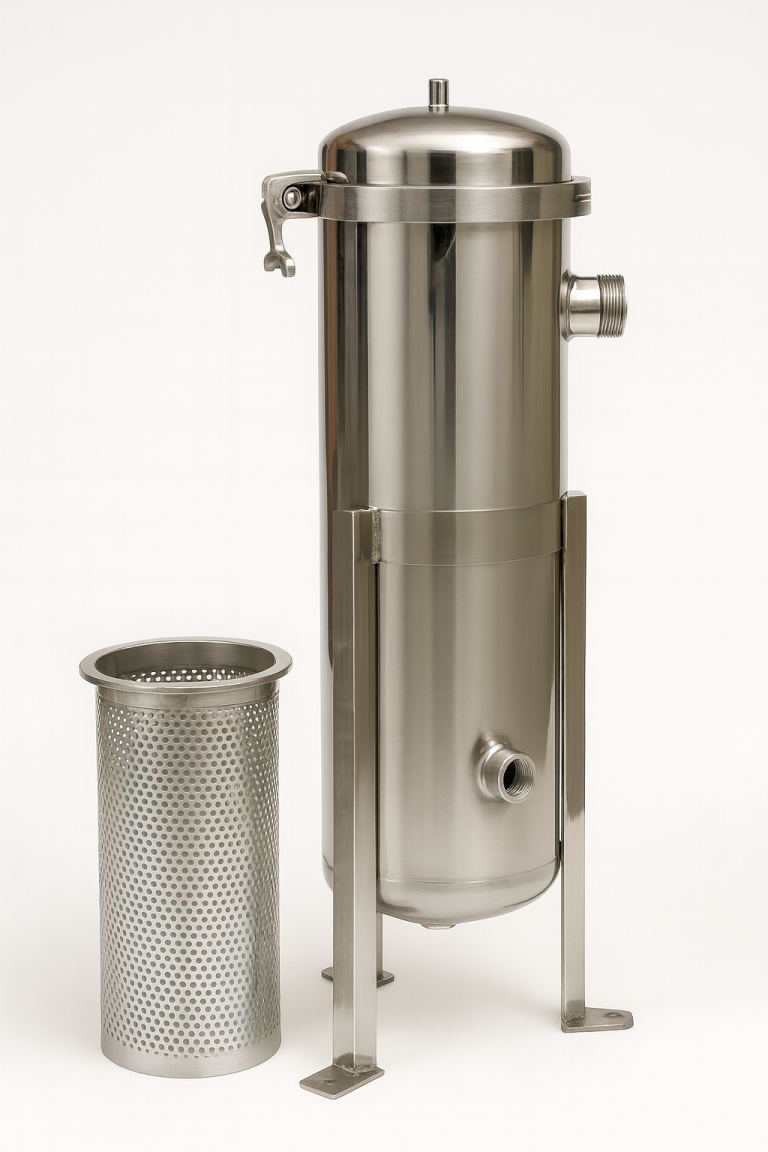

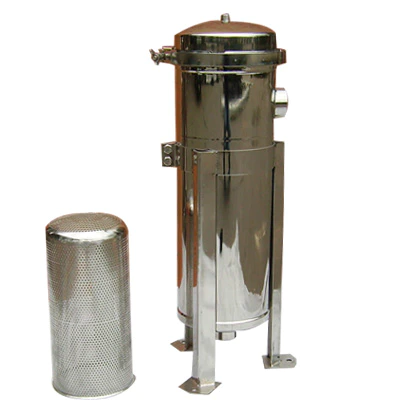

As shown in the product image, this housing comes with robust stainless steel legs welded to the body. This allows the unit to be placed directly onto the factory floor or skid base. It simplifies piping layout and significantly reduces installation time and labor costs compared to hanging or wall-mounted filters.
2. Economical High-Dirt Capacity
Like all STK bag filters, this series utilizes filter bags which offer exceptional dirt-holding capacity and low consumable costs compared to cartridges. It is the ideal choice for filtering fluids with moderate to high loads of suspended solids, providing longer service intervals.
3. Versatile Sizing for Various Flows
Based on the provided technical parameters, the STK-B series covers a wide range of applications. From compact units for lower flows (**5 m³/h**) to standard size #2 vessels handling up to **20 m³/h**, we have the right size for your specific process requirements.
4. Robust Industrial Construction

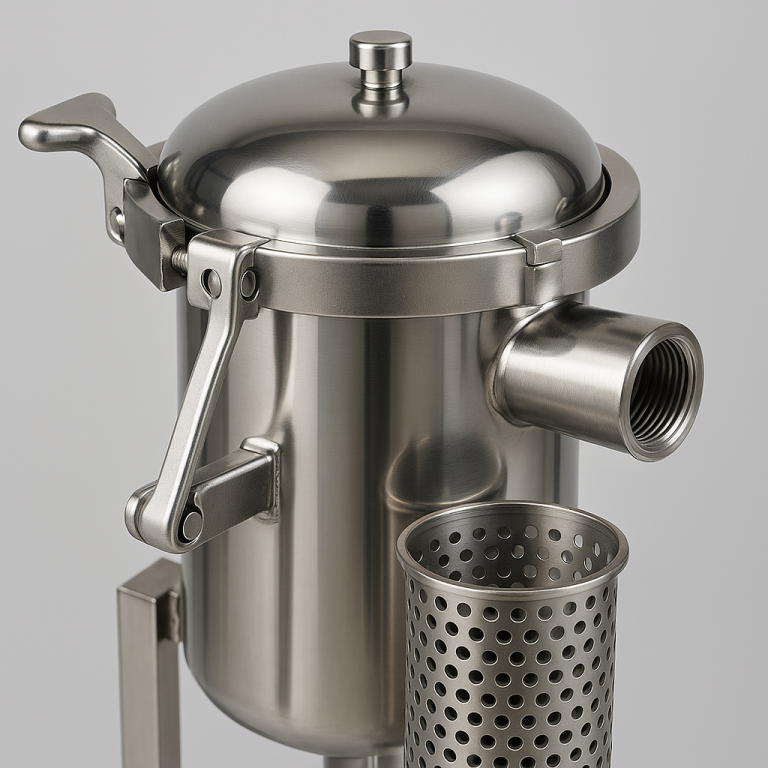

Constructed from high-grade **SUS304 or SUS316L stainless steel**, these housings are built to withstand industrial environments. They typically feature a quick-opening closure (such as a clamp or swing-bolt depending on model size) for fast bag changes.
Technical Specifications (STK2 Series - With Feet)
Standard specifications for STK2 bag filters with integrated support legs.
| Model | Number of filter bag | Diameter | In/Outlet diameter | Flow rate | Thickness |
|---|---|---|---|---|---|
| STK2-Φ230×410 | 1 | Φ230 | 1.5" | 10m³/h | 1.5mm |
| STK2-Φ230×810 | 1 | Φ230 | 1.5" | 20m³/h | 1.5mm |
* Note: Flow rates are theoretical for water processing. Equipped with support legs (feet) for floor standing installation.
Ideal for Quick Setup in Diverse Industrial Applications
The floor-standing design makes the STK-B series perfect for applications needing a reliable, standalone filtration unit:
- General Industrial Manufacturing:
Filtration of cooling water, machine tool coolants, and utility fluids where a rugged, floor-mounted filter is required.
- Paints, Inks & Resins:
Batch filtration stations where the unit can be easily placed next to mixing tanks for filling operations.
- Water Treatment & Pre-Filtration:
Serving as a standalone pre-filter for smaller RO units, softeners, or UV systems.
- Chemical Processing (Non-Critical):
Filtration of various chemicals, solvents, and aqueous solutions requiring SS316L compatibility.
