Rocker Quick-Open Cartridge Filter – Hygienic & Efficient
Rocker Quick-Open Cartridge Filter – Hygienic & Efficient
Product Overview
Our rocker quick-open Cartridge Filter delivers high-efficiency, sanitary liquid filtration
with an easy-access flange and rocker arm design. Constructed from SUS304 or SUS316L,
it ensures fast cartridge replacement, reliable operation, and minimal downtime in demanding applications.
Rocker Quick-Open Cartridge Filter – Hygienic & Efficient
Product Overview

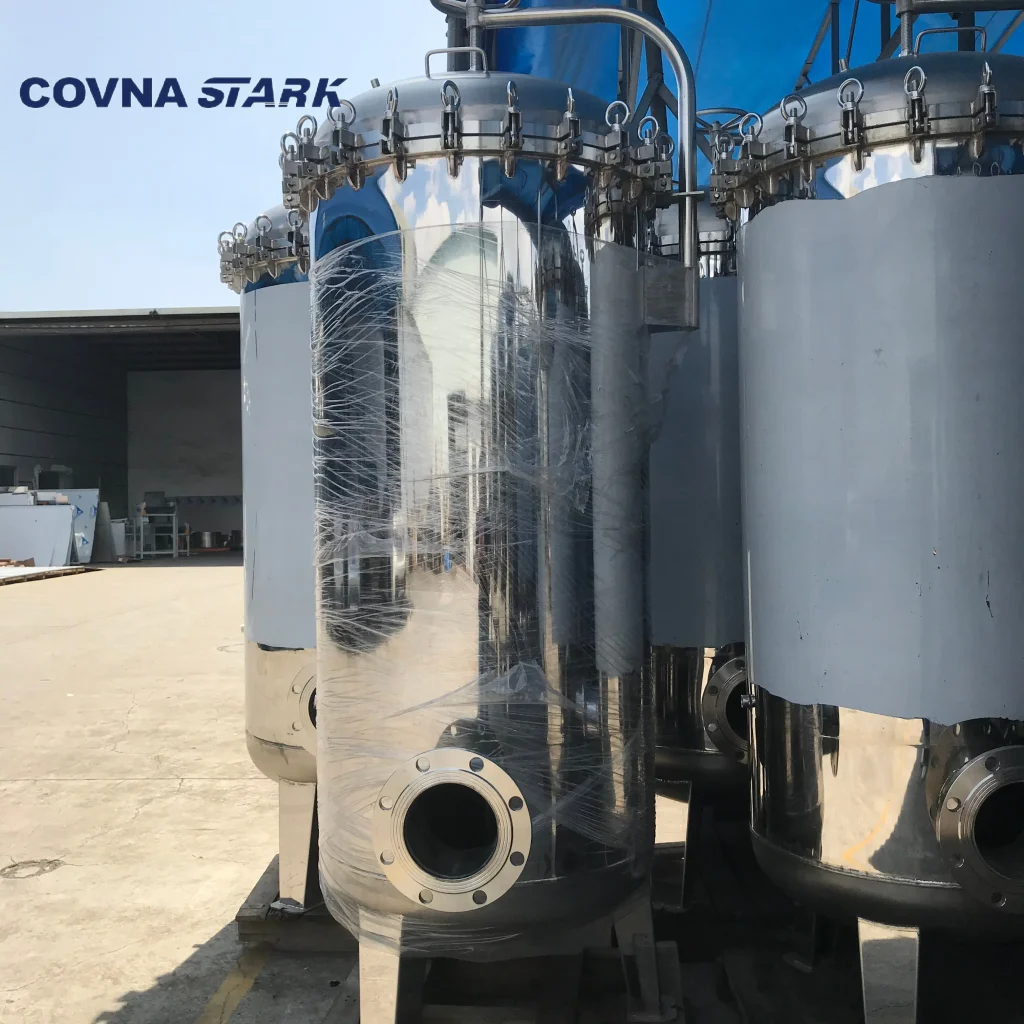

The Rocker Quick-Open Cartridge Filter is designed for fast and convenient cartridge replacement
in food, pharmaceutical, and industrial water treatment processes. Its rocker arm mechanism
simplifies opening and closing under pressure, while the flanged inlet/outlet ensures a secure
connection. Built with SUS304 or SUS316L stainless steel, it delivers hygienic performance
and resists corrosion under working pressures up to 0.7 MPa.
- Material: SUS304 / SUS316L
- Working Pressure: 0.7 MPa
- Design: Flat bottom, fast pressure release, single fixed
- Surface Finish: Glass or matte polish
Key Features & Benefits

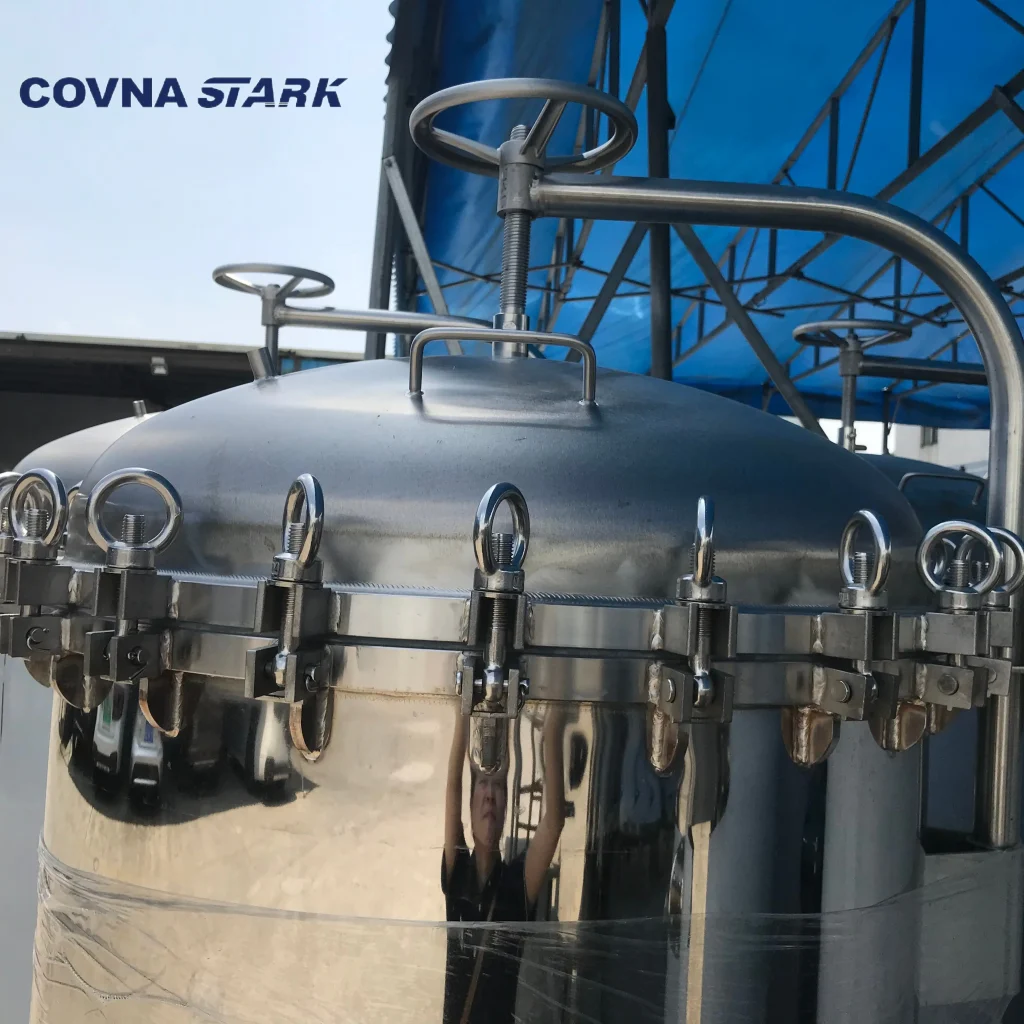

- Rocker Arm Quick-Open: Enables rapid access to filter cores, reducing downtime.
- Sanitary Construction: Smooth welds and optional mirror polish minimize contamination risk.

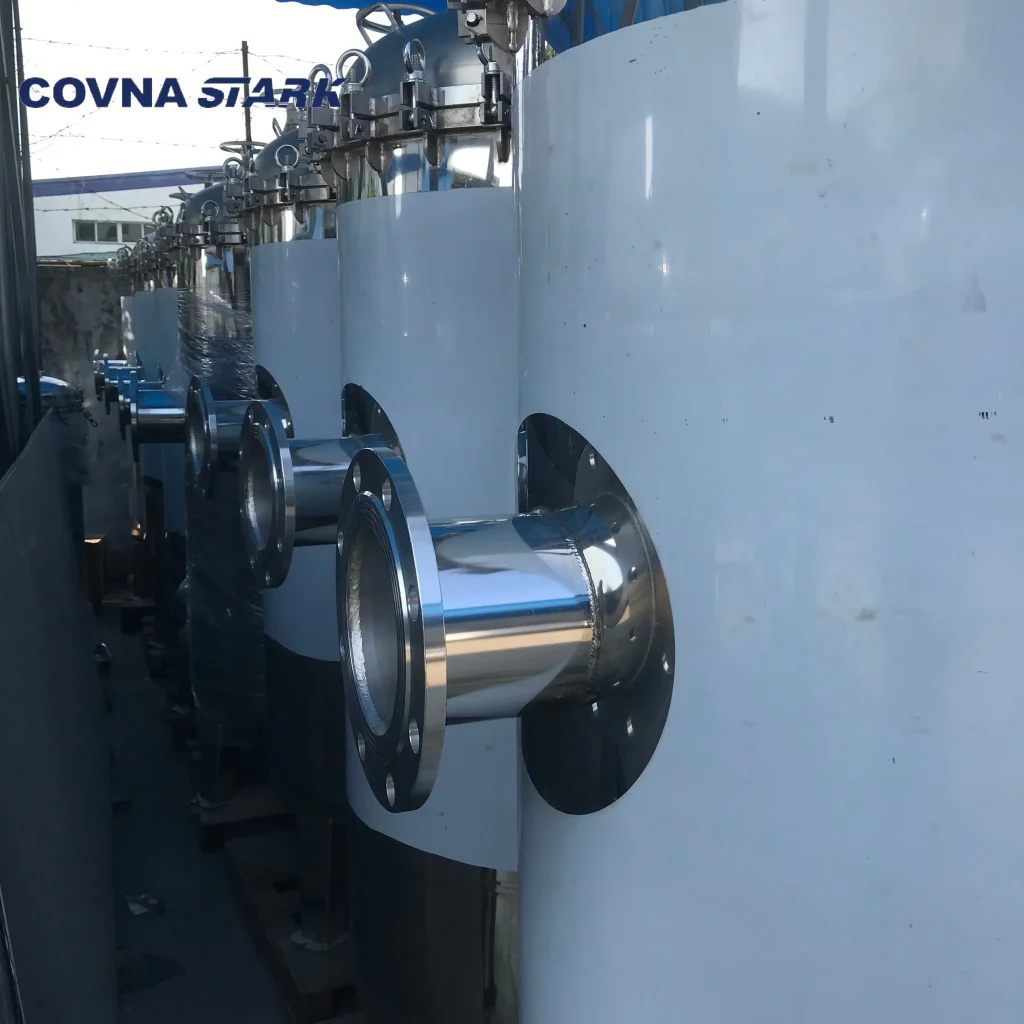

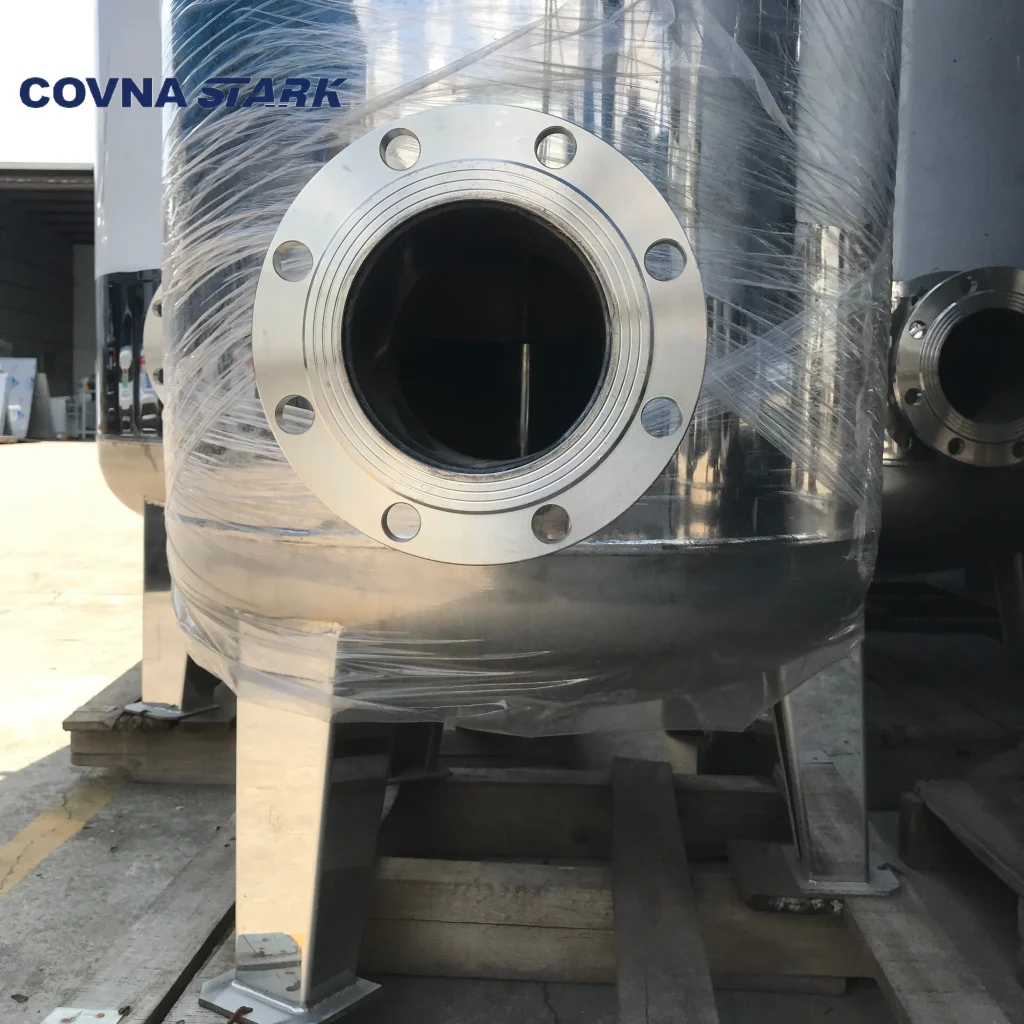

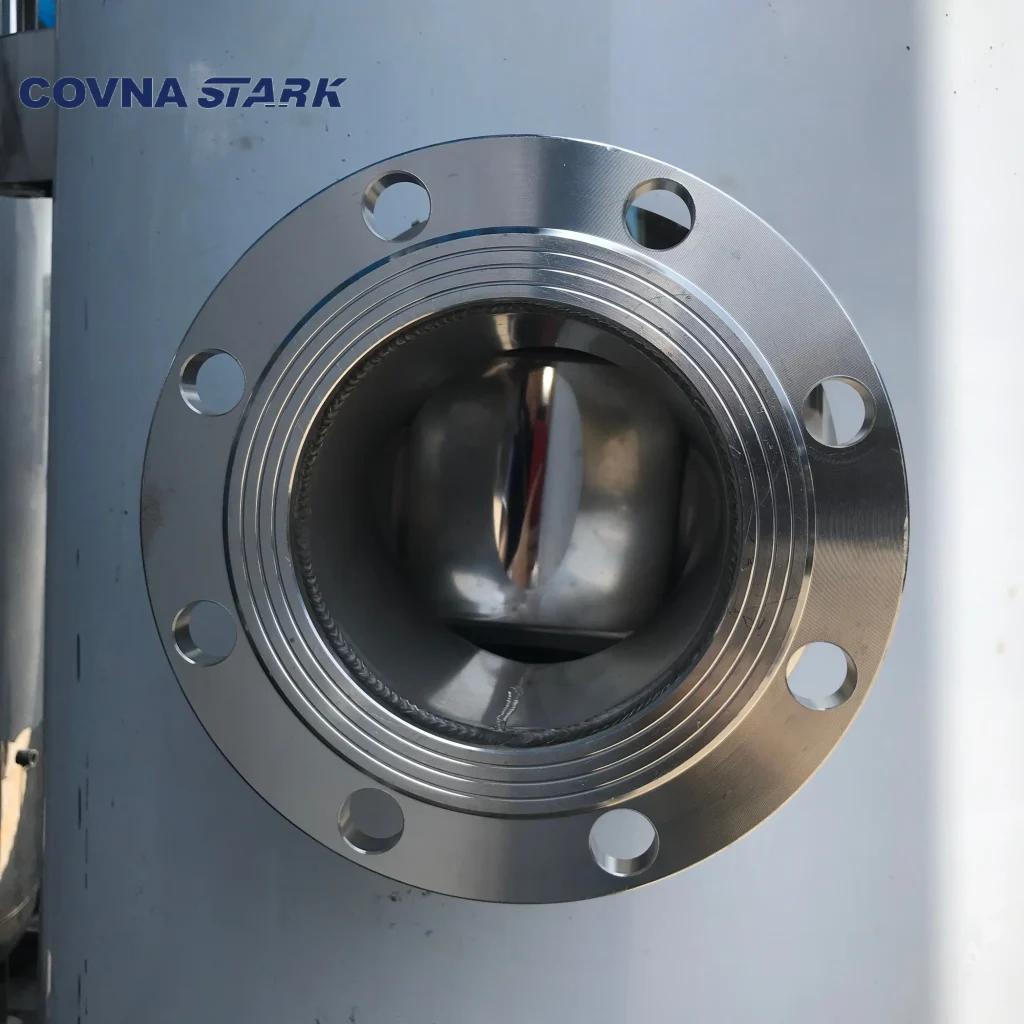

- Flanged Connections: Securely integrates with existing pipelines for leak-proof operation.
- Robust Performance: Reliable up to 0.7 MPa in demanding industrial or sanitary settings.
Material Structure & Reinforcement
- Stainless Steel Body: SUS304/SUS316L for corrosion resistance and long service life.
- Flat Bottom Design: Single-layer construction ensures stable pressure handling and easy draining.
- Surface Finish: Glass or matte polish meets hygiene or aesthetic requirements.
Quality & Assembly Control
- Pressure-tested to handle 0.7 MPa with a ≥4x burst margin.
- Accurate dimensional checks for flange alignment and rocker arm sealing.
- Meets NSF, CE, ISO9001 standards for international market compliance.
Product Parameter
General Specifications
- Material: SUS304 / SUS316L
- Working Pressure: 0.7 MPa
- Flat bottom, fast pressure release, single fixed design
- Surface finish: glass or matte
Technical Parameter
| Model | Diameter (mm) | Filter Core No. | Flow Reference (m³/h) | Housing Thickness (mm) | Effective Height (mm) | Inlet/Outlet |
|---|---|---|---|---|---|---|
| STK-0.5core/40 | 159 | 1 | 1.5 | 2.0 | 1100 | 1.5" |
| STK-1core/40 | 219 | 3 | 3.0 | 2.0 | 1300 | 1.5" |
| STK-2core/40 | 273 | 5 | 5.0 | 2.5 | 1500 | 2" |
| STK-3core/40 | 325 | 7 | 8.0 | 3.0 | 1700 | 2" |
| STK-5core/40 | 377 | 10 | 10.0 | 3.0 | 1900 | 2.5" |
| STK-8core/40 | 426 | 12 | 12.0 | 3.0 | 2100 | 2.5" |
| STK-10core/40 | 480 | 15 | 15.0 | 3.0 | 2300 | 2.5" |
Applicable Industry
The Rocker Quick-Open Cartridge Filter is well-suited for applications requiring rapid filter core access
and hygienic design:
- Food & Beverage: Efficient filtration of juices, syrups, dairy products, and CIP solutions.
- Pharmaceutical & Biotech: Polishing filtration for WFI, sterile process fluids, and sensitive formulations.
- Industrial Water Treatment: Pre-filtration for RO, cooling tower water, and process lines.
- Chemical Processing: Safe clarification of solvents, acids, and corrosive liquids with minimal downtime.
