Product Overview
Our quick-open flanged precision filter provides hygienic and efficient liquid filtration.
Made of SUS304 or SUS316L stainless steel, it ensures easy cartridge replacement,
reliable operation, and minimal downtime in demanding applications.
Quick-Open Flanged Precision Filter – Hygienic & Efficient
Product Overview

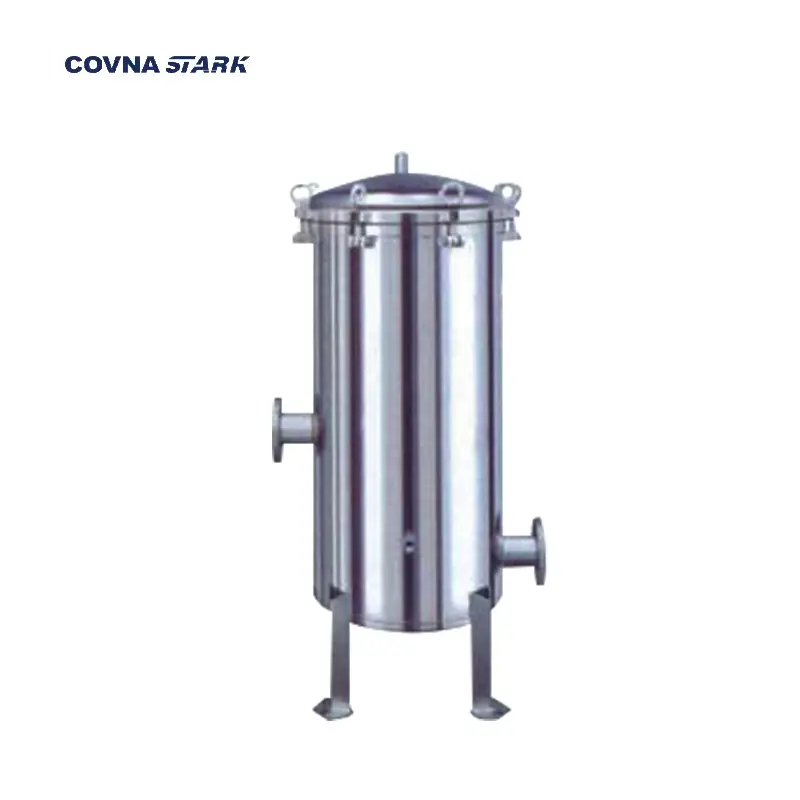

The Quick-Open Flanged Precision Filter is engineered for high-performance filtration
in food, pharmaceutical, and industrial water treatment. Its unique quick-open flange design
simplifies cartridge access and maintenance, reducing operational downtime. Constructed from
SUS304 or SUS316L stainless steel, it resists corrosion and delivers consistent, hygienic operation
under up to 0.7 MPa of working pressure.
- Material: SUS304 / SUS316L
- Working Pressure: 0.7 MPa
- Design: Flat bottom, fast pressure release, single fixed
- Surface Finish: Glass or matte polish
Key Features & Benefits
- Quick-Open Flange: Allows rapid cartridge changes, minimizing downtime.
- Hygienic Construction: Smooth welds and optional mirror finish reduce residue and contamination risks.
- Easy Integration: Flanged inlet/outlet ensures secure connection to existing pipelines.
- Durable Performance: Operates reliably under 0.7 MPa, suitable for demanding industrial settings.
Material Structure & Reinforcement
- Stainless Steel Body: High-grade SUS304/SUS316L ensures corrosion resistance and longevity.
- Flat Bottom: Single-layer pressure design, easy draining, stable under pressure.
- Optional Finishes: Choose glass or matte polish to match hygienic or aesthetic requirements.
Quality & Assembly Control
- Pressure-tested to handle 0.7 MPa with a ≥4x burst margin.
- Dimensional checks ensure precise flange alignment and leak-free sealing.
- Meets NSF, CE, and ISO9001 standards for international market compliance.
Product Parameter
General Specifications
- Material: SUS304 / SUS316L
- Working Pressure: 0.7 MPa
- Flat bottom, fast pressure release, single fixed design
- Surface finish: glass or matte
Technical Parameter

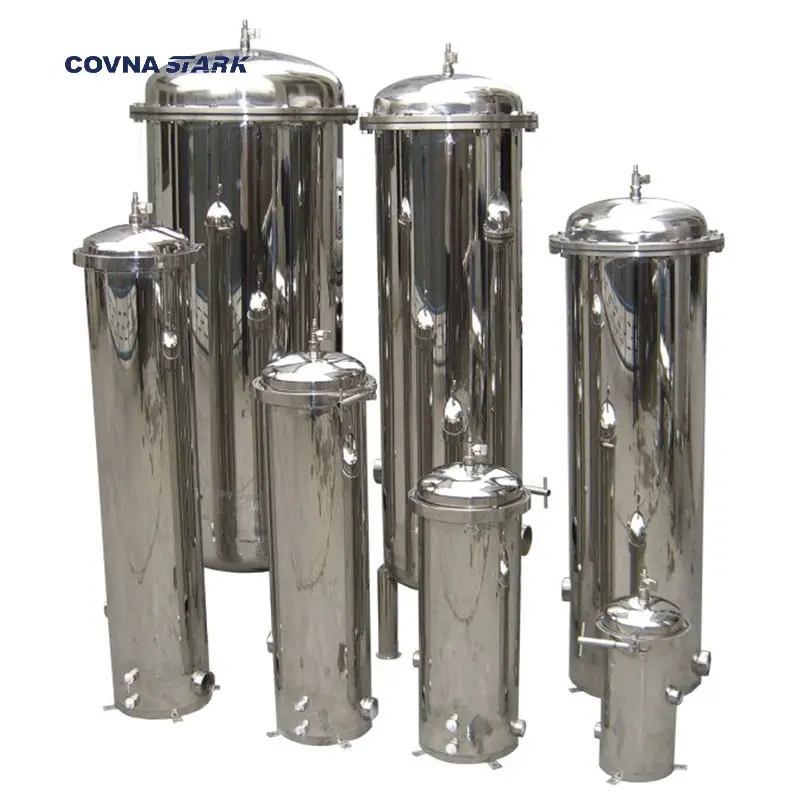

| Model | Diameter (mm) | Filter Core No. | Flow Reference (m³/h) | Housing Thickness (mm) | Effective Height (mm) | Inlet/Outlet |
|---|---|---|---|---|---|---|
| STK-0.5T | 159 | 1 | 1.5 | 2.0 | 1100 | 1.5" |
| STK-1T | 219 | 3 | 3.0 | 2.0 | 1300 | 1.5" |
| STK-2T | 273 | 5 | 5.0 | 2.5 | 1500 | 2" |
| STK-3T | 325 | 7 | 8.0 | 3.0 | 1700 | 2" |
| STK-5T | 377 | 10 | 10.0 | 3.0 | 1900 | 2.5" |
| STK-8T | 426 | 12 | 12.0 | 3.0 | 2100 | 2.5" |
| STK-10T | 480 | 15 | 15.0 | 3.0 | 2300 | 2.5" |
Applicable Industry
The Quick-Open Flanged Precision Filter is ideal for industries where rapid cartridge access and hygienic design are paramount:
- Food & Beverage: Filtration of juices, syrups, dairy products, and CIP solutions.
- Pharmaceutical & Biotech: Final polishing of WFI (Water for Injection) and sterile process fluids.
- Industrial Water Treatment: Pre-filtration in RO, cooling tower water, and process lines.
- Chemical Processing: Safe clarification of solvents, acids, alkalis, and corrosive liquids.
