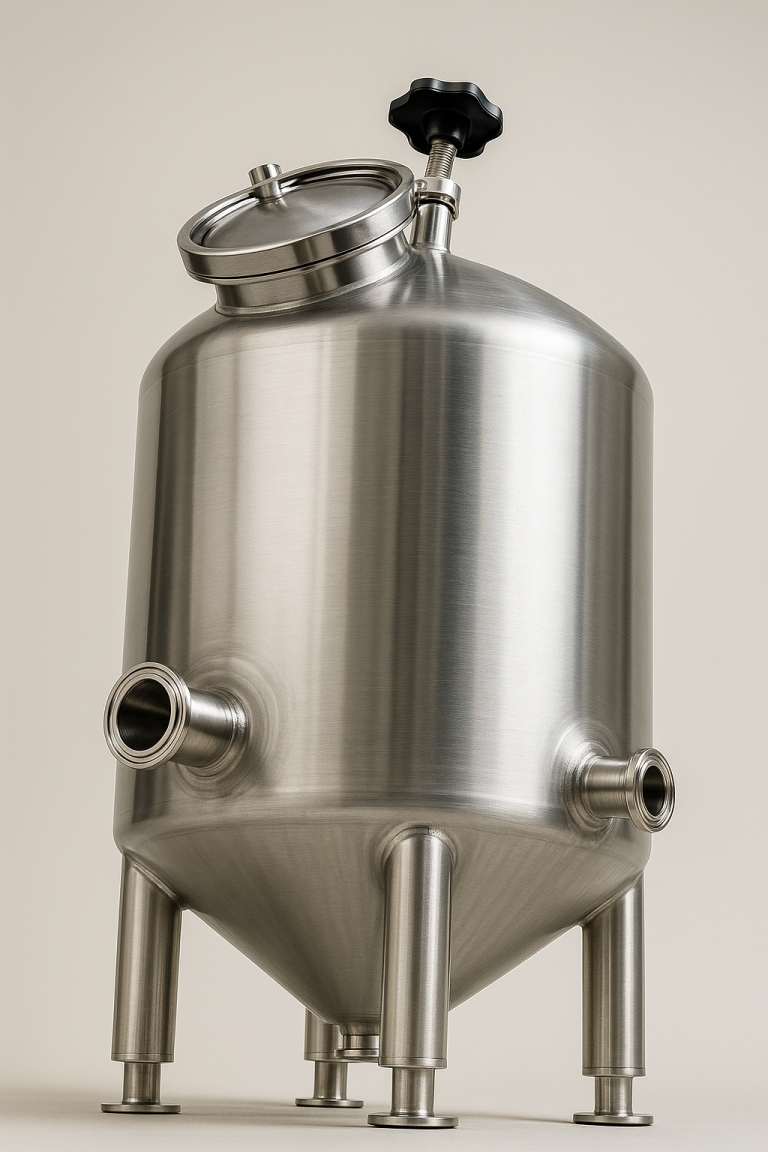

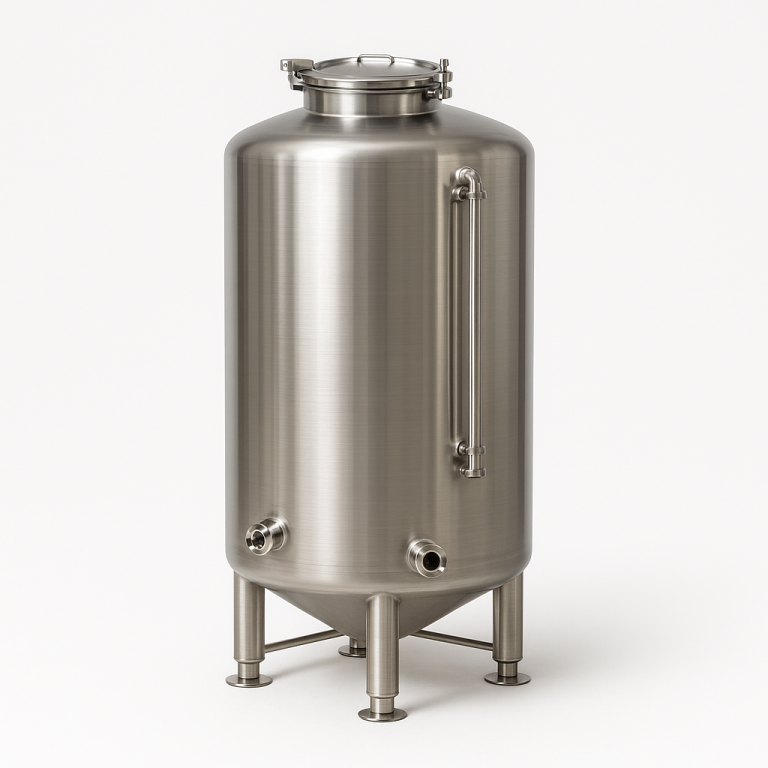

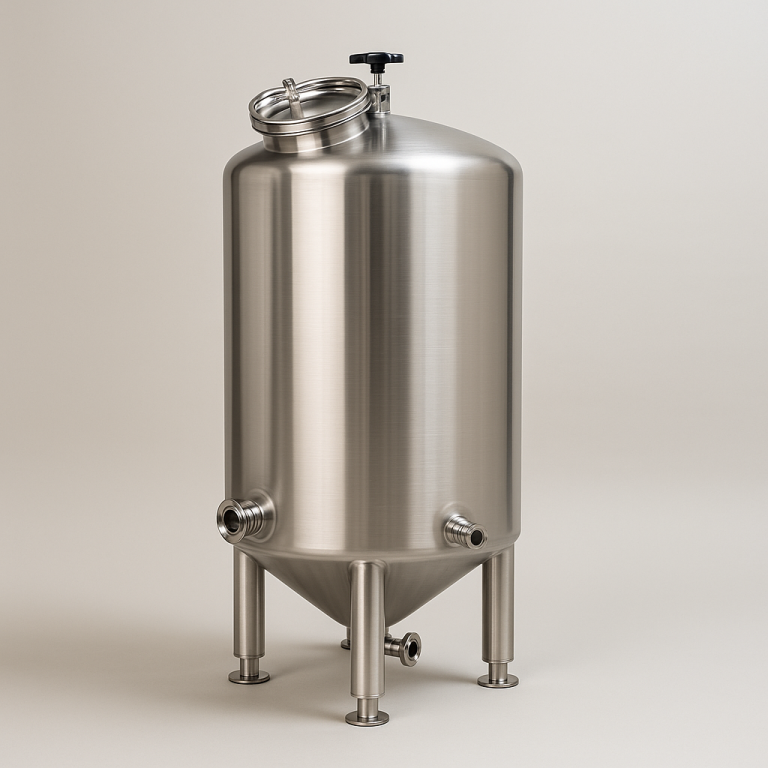

500L Vertical Stainless Steel Water Tank (Compact)
500L Vertical Stainless Steel Water Tank (Compact)
Space-saving 500L vertical stainless steel water tank for pilot lines, RO/DI buffer, and utility water. Built in 304 or 316L with sanitary TIG welding and validated passivation, the tank sits on adjustable legs and uses a conical bottom for fast drainage and easy cleaning. Standard tri-clamp connections with an optional sterile vent, spray ball, and level gauge. Leak or hydrostatic test and material certificates available.
Space-saving 500L vertical stainless steel water tank for pilot lines, RO/DI buffer, and utility water. Built in 304 or 316L with sanitary TIG welding and validated passivation, the tank sits on adjustable legs and uses a conical bottom for fast drainage and easy cleaning. Standard tri-clamp connections with an optional sterile vent, spray ball, and level gauge. Leak or hydrostatic test and material certificates available.
Overview
This 500L vertical stainless steel water tank is designed for compact rooms and skids where floor space matters. The conical bottom shortens liquid path to the outlet and reduces cleaning time. A top manway and prepared nozzle plan make inspection and CIP straightforward.
Construction
• Material: 304 or 316L stainless steel (project specific thickness)
• Interior: brushed as standard; mirror or electropolish optional
• Supports: four adjustable legs with anchor plates
• Connections: tri-clamp for sanitary lines; ANSI/DIN flanges available
• Manway: top quick-open type with EPDM or silicone gasket
Options
• Insulation with stainless jacket (PU or rock wool)
• Electropolished interior for lower Ra targets
• Spray ball (fixed or rotating), thermometer, level gauge or transmitter
• Sterile vent filter port for pharma/high-purity service
Documents and tests
• Leak or hydrostatic test report
• Material certificates (e.g., EN 10204 3.1)
• Passivation record; optional weld map and surface report
Related resources
• 1000L Stainless Steel Water Tank – Buyer’s Guide
• Horizontal vs Vertical Stainless Steel Water Tanks
| Parameter | Typical Specification (500L Vertical) |
|---|---|
| Capacity | 500 L (atmospheric by default) |
| Layout | Vertical on adjustable legs; conical bottom for fast drain |
| Material | 304 or 316L stainless steel |
| Thickness (reference) | Shell/head 2.0–2.5 mm (project specific) |
| Interior finish | Brushed (typ. Ra 0.8–1.6 um); mirror or electropolish optional |
| Connections | Tri-clamp sanitary as standard; ANSI/DIN flanges optional |
| Nozzles (typ.) | Inlet DN25–DN32; Outlet DN32–DN40; Drain DN25; Vent DN25; CIP DN25 |
| Manway | Top quick-open, 300–400 mm |
| Documents | Leak/hydrostatic test, material certificates, passivation record |
| Options | Insulation with SS jacket, spray ball, sterile vent, level gauge/transmitter |
| Reference dimensions | Dia. 700–850 mm; straight height 1200–1400 mm (without nozzles) |
• Water treatment: RO/DI buffer, utility water storage on compact skids
• Pharmaceutical and biotech utility rooms (with sterile vent option)
• Beverage and food plants for small batches and process water
• Cosmetics and personal care pilot lines
• Laboratory and pilot-scale facilities with tight floor space
