1000L Vertical Stainless Steel Water Tank
1000L Vertical Stainless Steel Water Tank

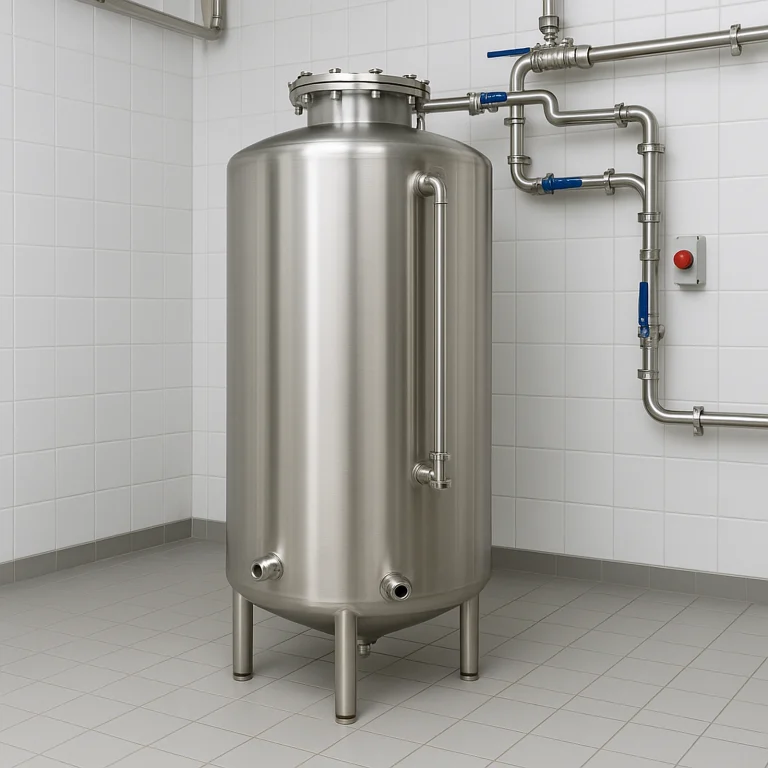

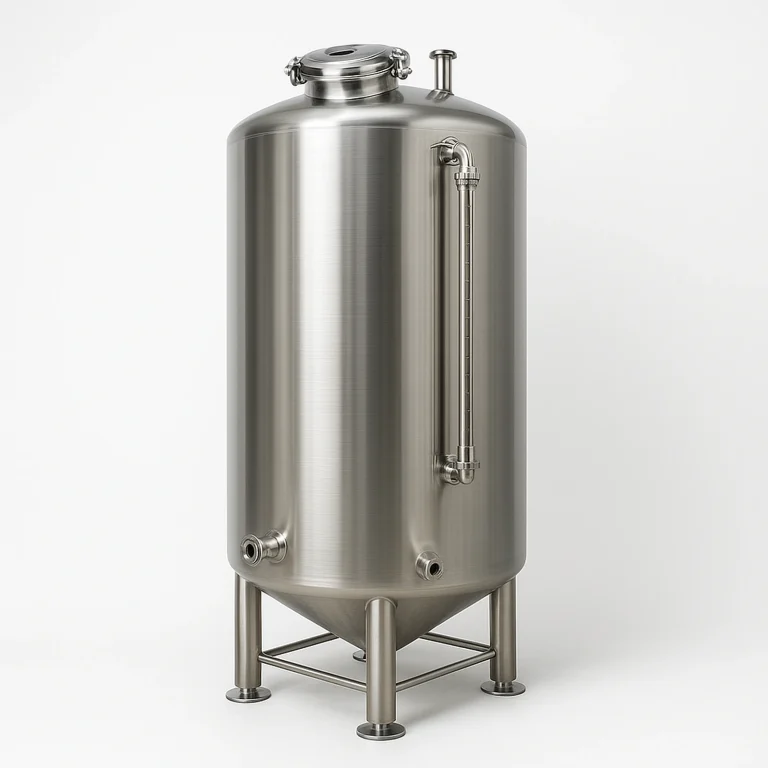

A versatile 1000L vertical stainless steel water tank for RO/DI and process water. Built in 304 or 316L with sanitary TIG welding and validated passivation, the tank uses a conical bottom for fast drainage and easy cleaning. Adjustable legs with anchor plates save floor space, and a top manway simplifies inspection. Tri-clamp or flanged ports available. Leak or hydrostatic test and material certificates can be provided.
A versatile 1000L vertical stainless steel water tank for RO/DI and process water. Built in 304 or 316L with sanitary TIG welding and validated passivation, the tank uses a conical bottom for fast drainage and easy cleaning. Adjustable legs with anchor plates save floor space, and a top manway simplifies inspection. Tri-clamp or flanged ports available. Leak or hydrostatic test and material certificates can be provided.
Overview and value
The 1000L vertical tank is a practical choice when you need a full cubic meter of buffer or storage without taking up much floor space. The conical bottom shortens the liquid path to the outlet, improving drain-down and reducing cleaning time.
Design and construction
• Orientation: vertical on adjustable legs or skirt base
• Material: 304 or 316L stainless steel (project specific thickness)
• Interior finish: brushed as standard; mirror or electropolish available for lower Ra targets

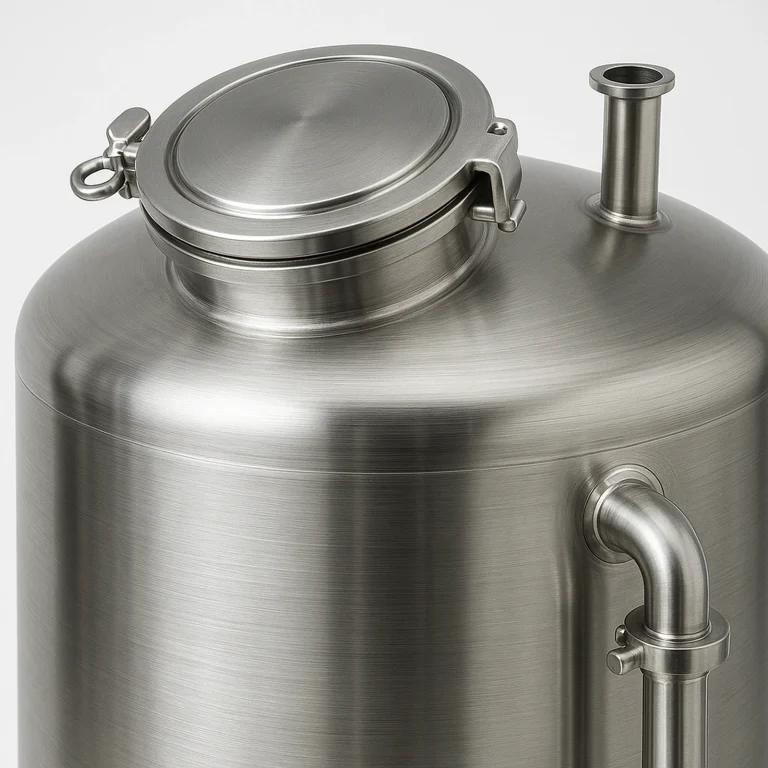

• Manway: top quick-open type with EPDM or silicone gasket
• Connections: tri-clamp sanitary as standard; ANSI/DIN flanges optional
• Drainage: outlet positioned at the lowest point with internal slope
Documentation and tests
• Leak or hydrostatic test report
• Material certificates (for example EN 10204 3.1)
• Passivation record; weld map and surface finish report available on request
Options
• Insulation with stainless jacket for chilled or hot service
• CIP-ready spray ball (fixed or rotating), thermometer, level gauge or transmitter
• Sterile vent filter port for pharma/high-purity service
• Sight glass, calibration strip, lifting lugs
Use notes and limitations
• Standard build is atmospheric and vented; for pressurized service specify design pressure and applicable code at RFQ stage.
• For higher chlorides or hot cleaning chemistry, 316L and tighter cleaning control are recommended.
• Confirm room headroom for manway swing and instrument access.
Real-world benefit
Compared with a horizontal 1000L tank, the vertical version uses less floor area and drains faster through the conical bottom, making it suitable for utility rooms and compact process lines. The trade-off is greater overall height; check ceiling clearance early in layout.
| Parameter | Typical Specification (1000L Vertical) |
|---|---|
| Capacity | 1000 L (atmospheric, vented) |
| Layout | Vertical on adjustable legs; conical bottom for fast drain |
| Material | 304 or 316L stainless steel |
| Thickness (reference) | Shell/head 2.0 to 3.0 mm (project specific) |
| Interior finish | Brushed (typ. Ra 0.8 to 1.6 um); mirror or electropolish optional |
| Connections | Tri-clamp sanitary as standard; ANSI/DIN flanges optional |
| Nozzles (typ.) | Inlet DN25–DN40; Outlet DN32–DN50; Drain DN25; Vent DN25; CIP DN25; Instrument DN20 |
| Manway | Top quick-open, 300 to 400 mm |
| Reference dimensions | Dia. 800 to 1000 mm; straight height 1600 to 1800 mm (without nozzles) |
| Options | Insulation with SS jacket, spray ball, sterile vent, level gauge/transmitter, sight glass |
| Documents | Leak/hydrostatic test, material certificates, passivation record; weld map/surface report on request |
• Water treatment: RO/DI buffer and utility water storage
• Pharmaceutical and biotech utility rooms (with sterile vent option)
• Beverage and food plants for process water or batching support
• Cosmetics and personal care production requiring easy cleanout
• Pilot and mid-scale manufacturing lines with limited floor space
