Stainless Steel Mixing Tank – Hygienic Blending Solution

Product Features and Benefits

1. Food- and Pharma-Grade Stainless Steel (304 / 316L)

Manufactured using SUS304 or SUS316L stainless steel to ensure corrosion resistance, hygiene, and long service life. Ideal for food-grade, pharmaceutical, and cosmetic production environments where contamination control is critical.

Customer Benefit: No risk of product contamination, meets GMP/FDA compliance, and supports long-term use even with acidic or alkaline materials.

2. Flexible Mixing Mechanism

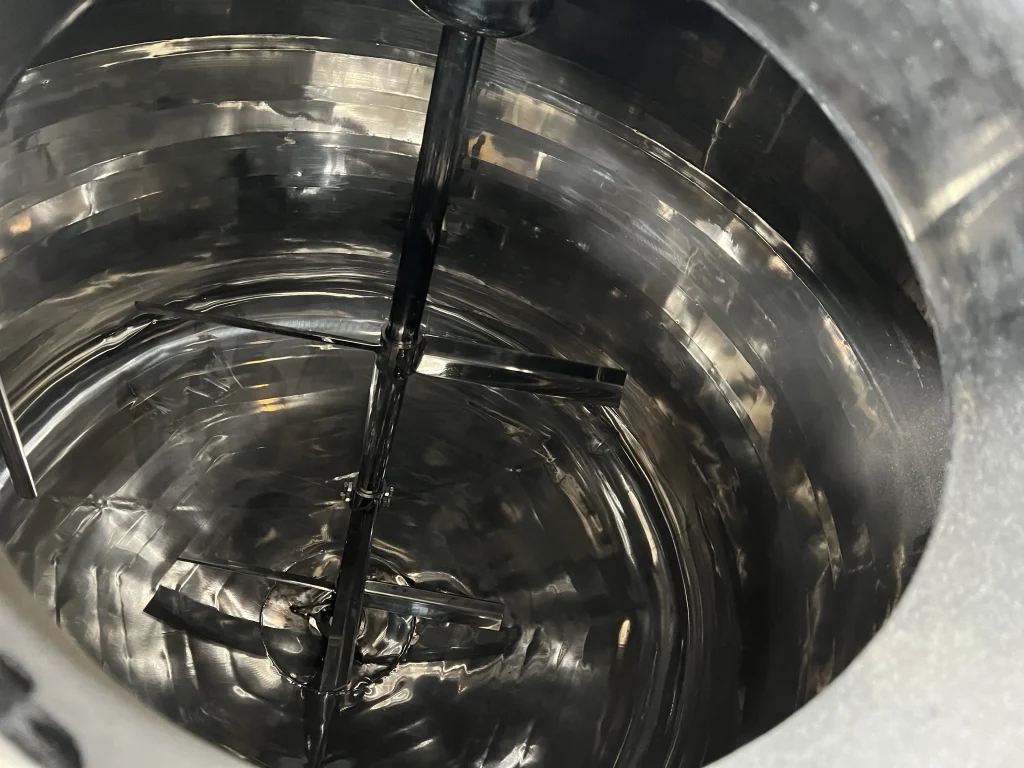

Available with top-entry, bottom-entry, or magnetic agitators. Mixing blade types include anchor, paddle, turbine, and high-shear emulsifiers, depending on viscosity, shear sensitivity, and product characteristics.

Customer Benefit: Consistent and uniform mixing for a wide range of materials from thin liquids to high-viscosity pastes or emulsions.

3. Integrated Heating & Cooling Jacket

The tank is equipped with a dimple or full jacket for circulating heating or cooling media (steam, water, glycol). Insulation layer is optional to reduce heat loss and maintain process temperature stability.

Customer Benefit: Energy-efficient thermal control for sensitive ingredients, supports temperature-controlled production lines.

4. Fully Sanitary Design with CIP/SIP Capability

Interior surface is mirror-polished to Ra ≤ 0.4μm with smooth welding, arc corners, and no dead angles. CIP spray ball and optional SIP system allow for automatic cleaning and sterilization.

Customer Benefit: Saves cleaning time, reduces contamination risks, and supports frequent product changeovers in regulated industries.

5. Customizable Port & Control Configurations

Each tank can be tailored with manholes, level sensors, sight glasses, temperature probes, bottom outlets, overflow protection, and integrated control panels (manual or PLC).

Customer Benefit: Modular design saves integration time and adapts to your factory's automation level and production needs.

6. High Structural Integrity and Load-Bearing Support

The frame, legs, and lifting lugs are reinforced for high-capacity operations, ensuring vibration-free and stable mixing even under full load.

Customer Benefit: Enhanced safety, reduced wear, and better durability for long-term production cycles.

7. Wide Capacity Range with Rapid Delivery

Standard models range from 50L to 20,000L, with customizable tank shapes (cylindrical, conical bottom, elliptical head) and delivery-ready inventory for popular sizes.

Customer Benefit: Fits both pilot scale and large-scale production. Faster lead times reduce project delays.
