Project Background

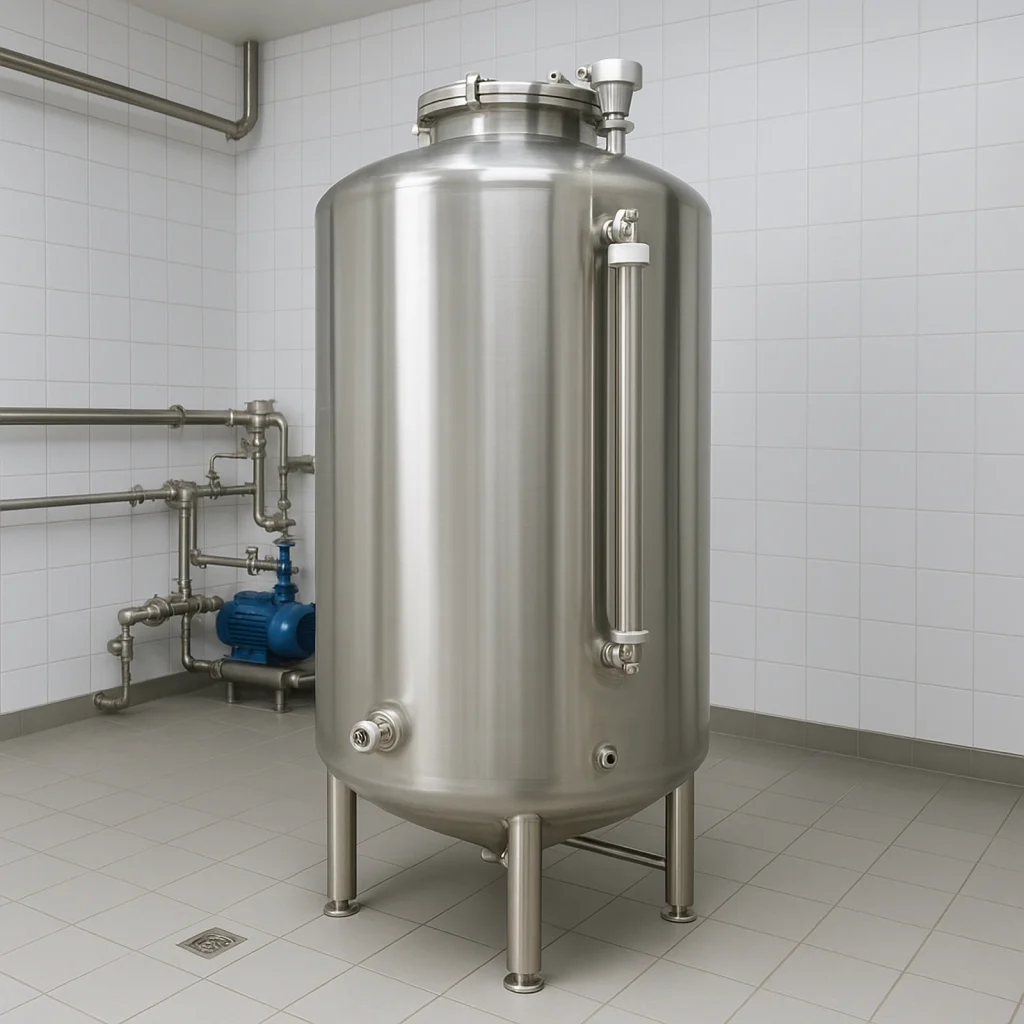

- Site: pharmaceutical utility room for purified water or RO/DI buffer
- Constraints: limited headroom, documented hygiene controls, repeatable cleaning
- Objectives: reduce hold-up and cleaning time, enable sterile venting, provide validation documents
Solution Overview

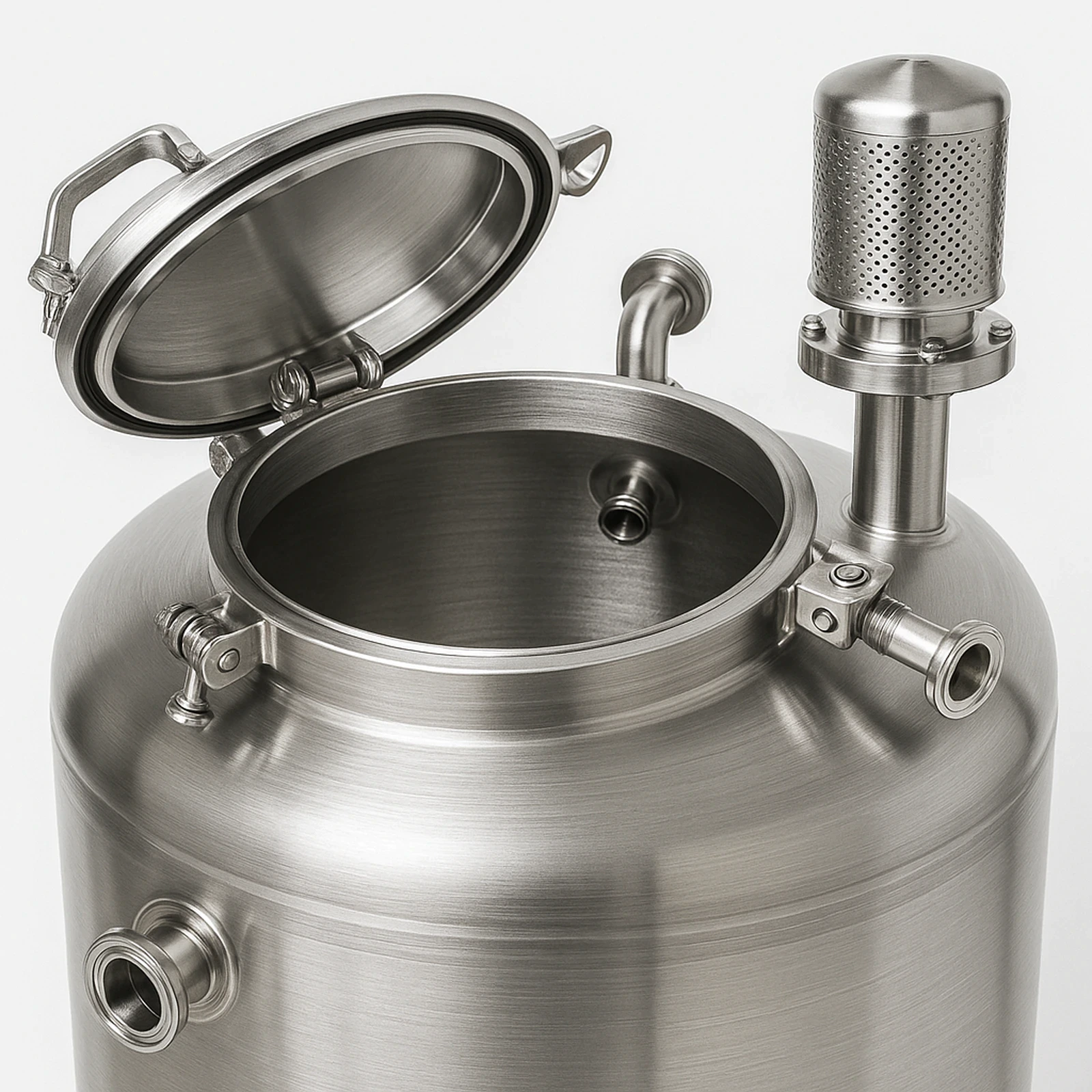

We delivered a 1500L 316L vertical tank designed for high-purity service. The conical bottom shortens the liquid path to the outlet, the electropolished interior targets a low surface roughness for easier cleaning, and a sterile vent portprotects the tank during cooling and operation. The layout uses adjustable legs to save floor space and a top manway for inspection.
Key Configuration
| Item | Specification |
|---|---|
| Capacity | 1500 L (atmospheric, vented) |
| Material | 316L stainless steel |
| Interior finish | Electropolished interior, typical Ra target 0.6 to 0.8 um |
| Layout | Vertical on adjustable legs; conical bottom to lowest-point outlet |
| Connections | Tri-clamp sanitary as standard; ANSI/DIN flanges optional |

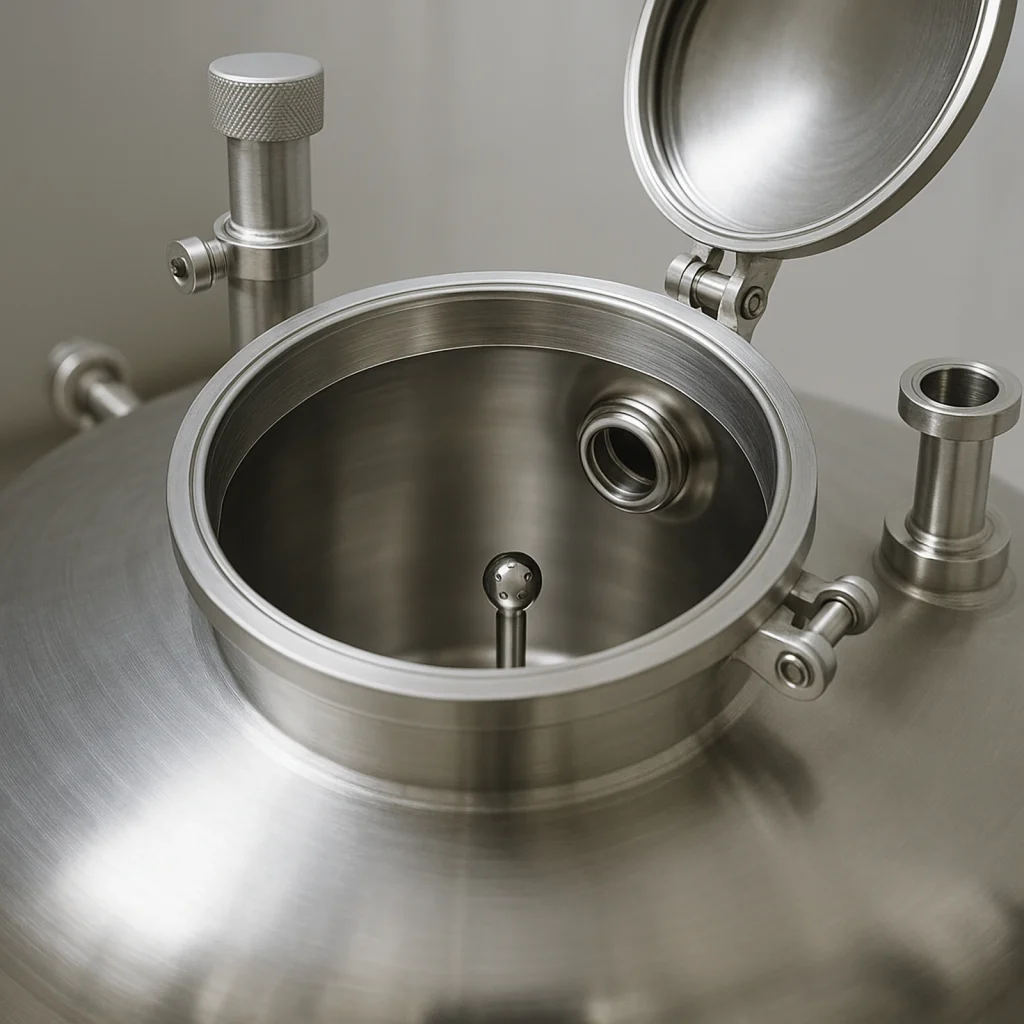

| Manway | Top quick-open, 300 to 400 mm |
| Nozzle schedule | Inlet DN25–DN40, Outlet DN32–DN50, Drain DN25, Vent DN25 (sterile filter port), CIP DN25, Instrument DN20 |
| Options installed | Rotating spray head, level indicator, thermometer, calibration strip |
| Reference dimensions | Dia. 900 to 1100 mm; straight height 1700 to 2000 mm (without nozzles) |
Implementation and Timeline
- RFQ review and quote approval
- GA drawing and nozzle schedule approval
- Fabrication and finishing
- Factory tests and document pack preparation
- Delivery and installation on prepared base
- SAT checks and operator training
Documents Delivered
- Material certificates (e.g., EN 10204 3.1)
- Leak or hydrostatic test report
- Passivation record
- Optional surface roughness report and weld map
- Basic installation and cleaning guidance
Outcome
- The conical bottom and CIP coverage reduced residual hold-up and simplified cleaning steps.
- Operators reported shorter validation time compared with the previous vessel of similar size.
- The compact vertical layout met headroom limits while keeping maintenance access clear.
Notes: Performance feedback above reflects operator reports on site; exact values vary with process, chemistry, and cleaning program.
