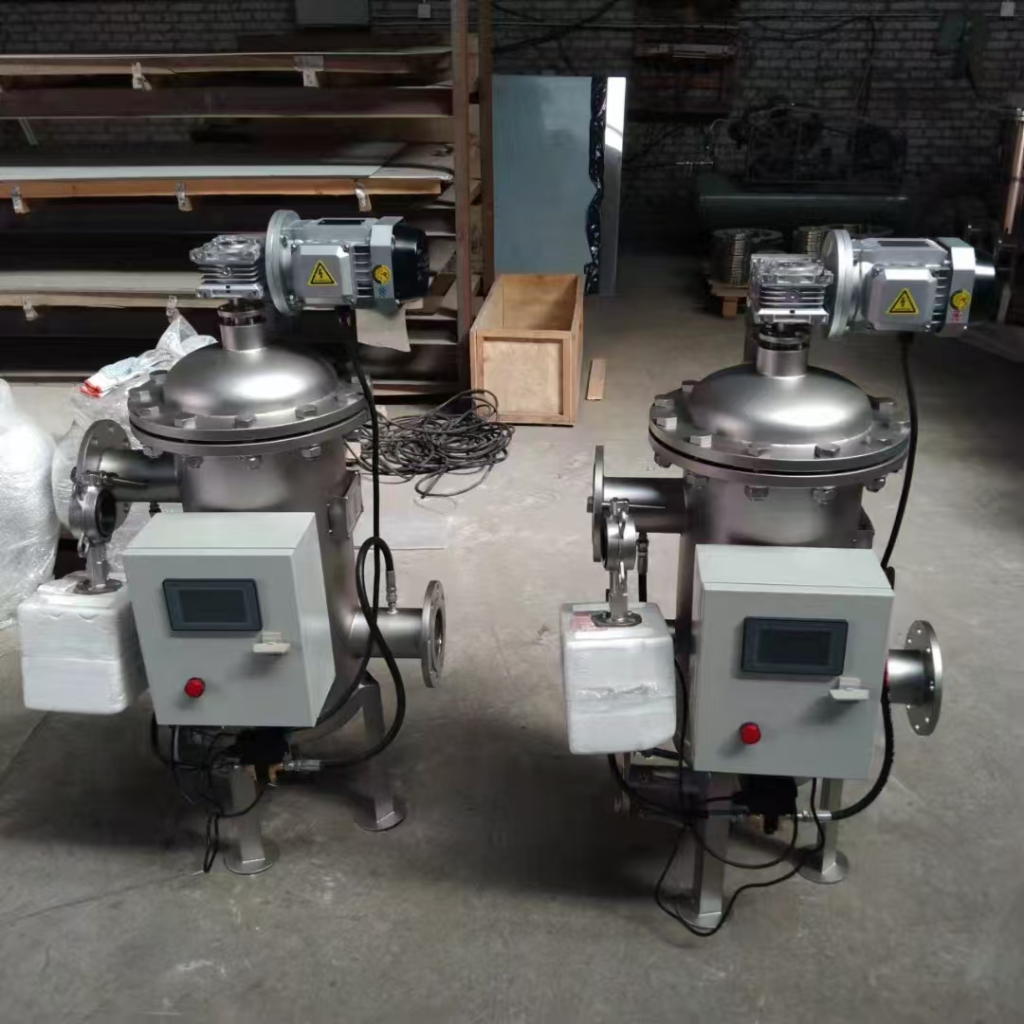

Technical Specification: STK-N04-1.0 Automatic Self-Cleaning Filter (SS316 High-Configuration)
1. Product Overview
The STK-N04-1.0 Automatic Self-Cleaning Filter is a premium industrial filtration unit engineered for critical water treatment applications requiring high reliability and continuous operation. Constructed entirely from 316 Stainless Steel (SS316), this system offers superior resistance to corrosion compared to standard carbon steel units.
With a flow capacity of 90T/H and a filtration precision of 200 microns (µm), the STK-N04-1.0 is the ideal replacement for traditional bag filters, offering a sustainable, automated solution that eliminates consumable waste.
Looking for other capacities or filtration types? View our full range of Industrial Water Filtration Solutions here.
2. Technical Data Sheet
The following specifications detail the operational limits and physical parameters of the STK-N04-1.0:
| Model | STK-N04-1.0 |
|---|---|
| Max. Flow Rate | 90 T/H |
| Housing Diameter | Ø 273 mm |
| Inlet/Outlet Connections | DN100 (4") |
| Filtration Precision | 200 microns (µm) |
| Design Pressure | 1.0 Mpa |
| Cleaning Mechanism | Motor-driven Brush/Scanner (SS316) |
| Power Supply | AC 380V / 50Hz / 3-Phase |
| Motor Power | 0.37 KW |
3. Sustainable & Maintenance-Free Operation
Modern industries are increasingly focused on reducing environmental footprint and operating costs (OPEX). The STK-N04-1.0 is designed to meet these "Green Manufacturing" standards.
Eliminate Disposable Filter Bags

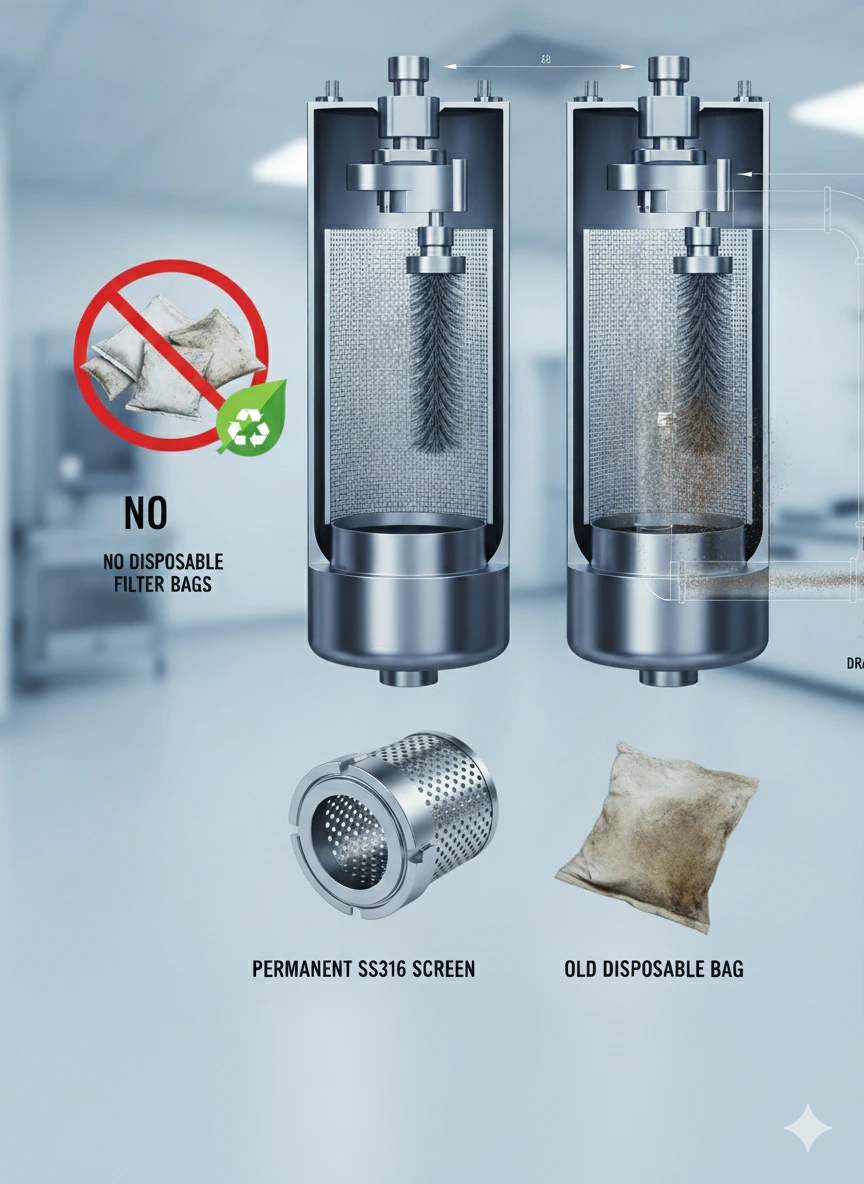

Traditional bag filters require frequent manual intervention to replace dirty bags, creating a cycle of recurring costs and generating hazardous solid waste soaked in pollutants. The STK-N04-1.0 utilizes a permanent SS316 Stainless Steel Filter Screen. This durable screen is automatically cleaned and reused, eliminating the need to ever buy or dispose of filter bags again.
Eco-Friendly Water Treatment
- Zero Consumables: No disposable plastic or fiber waste is generated during operation.
- Water Saving: The intelligent cleaning cycle is precise and short, significantly minimizing wastewater discharge compared to sand filters or manual backwashing.
- Energy Efficient: Driven by a high-efficiency 0.37KW Motor, the system consumes minimal electricity.
4. Premium Component Configuration
To ensure long-term reliability, the STK-N04-1.0 integrates top-tier global brands, distinguishing it from standard market alternatives.
- Drive System (German SEW Motor): The cleaning cycle is powered by a SEW-EURODRIVE motor. Known for high torque and durability, this motor ensures the cleaning shaft rotates smoothly.
- Intelligent Control (Siemens PLC): The brain of the system is a Siemens PLC equipped with an LCD display. It offers precise logic control for timing and differential pressure monitoring.
- Electrical Safety (Schneider Electric): Internal electrical elements are sourced from Schneider Electric, ensuring circuit stability.
- Discharge System (Covna Valve): A DN40 Electric Drain Valve from Covna handles the discharge, featuring a fast response time.
5. Operational Sequence & Working Principle
The STK-N04-1.0 utilizes a smart differential pressure (DP) monitoring system to trigger self-cleaning without interrupting the main water flow.
Filtration Phase
Raw water enters through the DN100 inlet and passes through the permanent SS316 Screen. Impurities are trapped on the screen surface, while clean water flows to the outlet.
Self-Cleaning Phase
When the differential pressure reaches the preset value, the Siemens PLC initiates the cleaning cycle:
- The Covna Drain Valve opens.
- The SEW Motor rotates the cleaning device (SS316 shaft and brushes).
- Impurities are scrubbed off the screen and flushed out through the drain.
Note: The system continues to supply filtered water during the cleaning cycle.
6. Material Specifications
Designed for longevity, every wetted component of the STK-N04-1.0 is selected to resist corrosion.
- Filter Housing: SS316
- Filter Screen (Element): SS316
- Cleaning Device: SS316
- Shaft: SS316
- Seals: High-performance Graphite Seals (Superior thermal resistance compared to rubber).
Request a Quote or Drawing
Do you need specific installation dimensions, 3D CAD models, or a formal price quotation for the STK-N04-1.0?
Our engineering team can provide a customized proposal within 24 hours.
